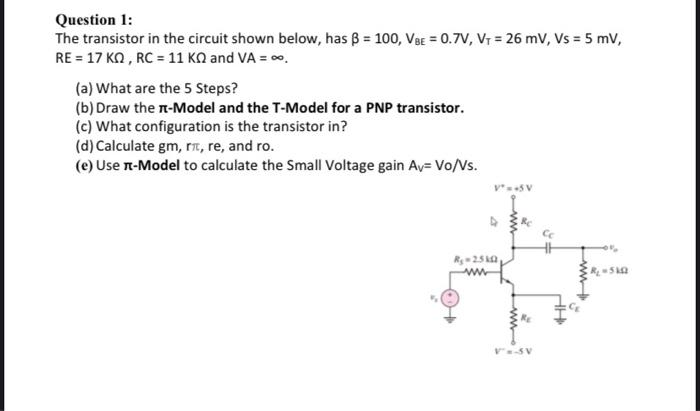

Question 1: The transistor in the circuit shown below, has B = 100, Vse = 0.7V, V1 = 26 mV, Vs = 5 mv, RE = 17 KN , RC =

[answerhappygod]

Question 1 The Transistor In The Circuit Shown Below Has B 100 Vse 0 7v V1 26 Mv Vs 5 Mv Re 17 Kn Rc 1 (25.07 KiB) Viewed 28 times

Question 1: The transistor in the circuit shown below, has B = 100, Vse = 0.7V, V1 = 26 mV, Vs = 5 mv, RE = 17 KN , RC = 11 K and VA = . (a) What are the 5 Steps? (b) Draw the T-Model and the T-Model for a PNP transistor. (c) What configuration is the transistor in? (d) Calculate gm, rt, re, and ro. (e) Use T-Model to calculate the Small Voltage gain Av=Vo/Vs. V-5V w R-251 w w HE VESV
