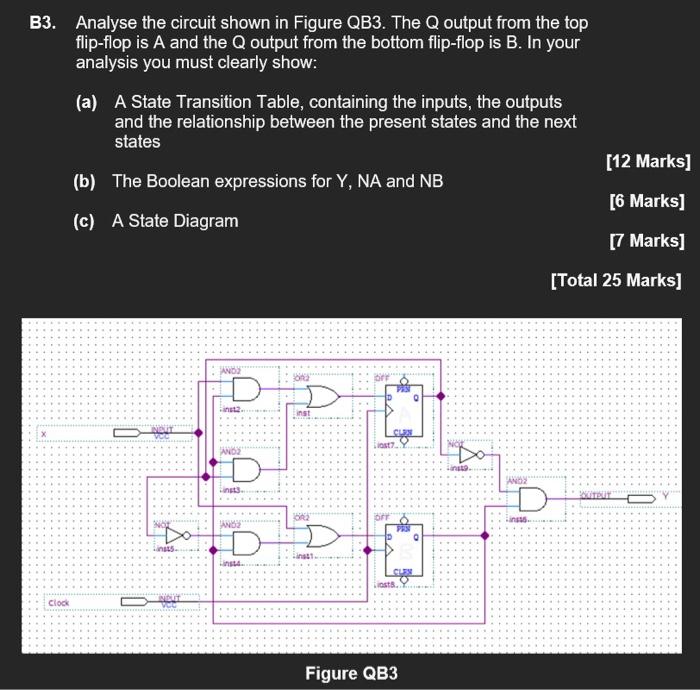

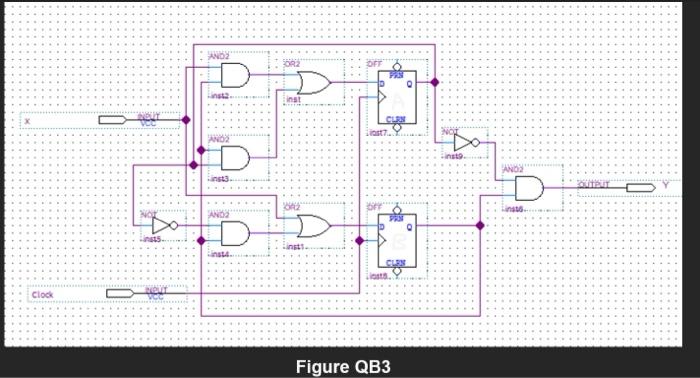

B3. Analyse the circuit shown in Figure QB3. The Qoutput from the top flip-flop is A and the Qoutput from the bottom flip-flop is B. In your analysis you must clearly show: (a) A State Transition Table, containing the inputs, the outputs and the relationship between the present states and the next states (b) The Boolean expressions for Y, NA and NB [12 Marks] [6 Marks] (c) A State Diagram [7 Marks] [Total 25 Marks] ANOS LEA 2 inst 07 ANDS ΑΝΟΣ 3 0 OFF Q ILS 1 CUN lots Clock Figure QB3
