Question 1: The transistor in the circuit shown below, has B = 100, VBE = 0.7V, V1 = 26 mV, Vs = 5 mv, RE = 17 K, RC = 1

Post by answerhappygod »

Question 1 The Transistor In The Circuit Shown Below Has B 100 Vbe 0 7v V1 26 Mv Vs 5 Mv Re 17 K Rc 1 1
Question 1 The Transistor In The Circuit Shown Below Has B 100 Vbe 0 7v V1 26 Mv Vs 5 Mv Re 17 K Rc 1 1 (29.09 KiB) Viewed 25 times

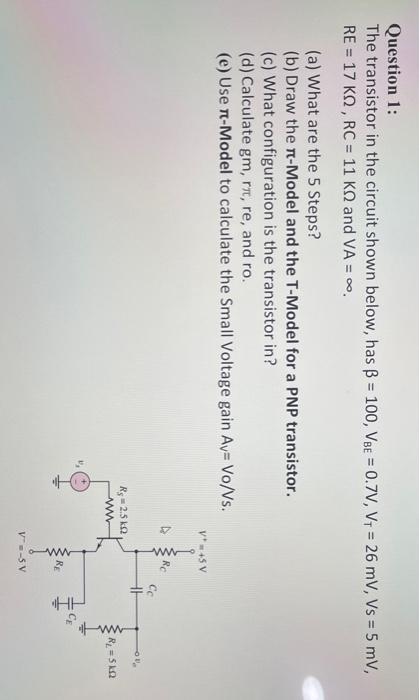

Question 1: The transistor in the circuit shown below, has B = 100, VBE = 0.7V, V1 = 26 mV, Vs = 5 mv, RE = 17 K, RC = 11 K and VA = .. (a) What are the 5 Steps? (b) Draw the T-Model and the T-Model for a PNP transistor. (c) What configuration is the transistor in? (d) Calculate gm, ru, re, and ro. (e) Use T-Model to calculate the Small Voltage gain Av=VoNs. V5V RC CC 5 th ou Rs - 2.5 kg Ri=512 C RE 0w VSV
