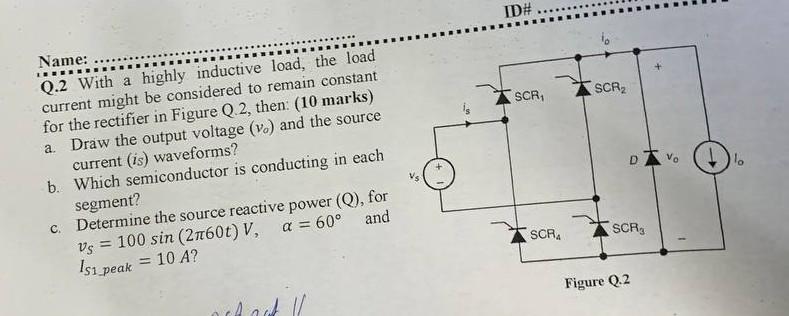

ID# Name: RE SCRZ SCR D7 vo 1. Q.2 With a highly inductive load, the load current might be considered to remain constant for the rectifier in Figure Q.2, then: (10 marks) a. Draw the output voltage (v.) and the source current (is) waveforms? b. Which semiconductor is conducting in each segment? c. Determine the source reactive power (Q), for Vs = 100 sin (2160t) V, a = 60° and 1_peak = 10 A? SCR SCR --- Isi Figure Q.2 chaut Il
