R Fill in the blanks: 1) (2 points) If the given voltage Vin = 10 volts, R1 = 10 K, and R2 = 30 Kg, the output voltage v

[answerhappygod]

R Fill In The Blanks 1 2 Points If The Given Voltage Vin 10 Volts R1 10 K And R2 30 Kg The Output Voltage V 1 (32.89 KiB) Viewed 34 times

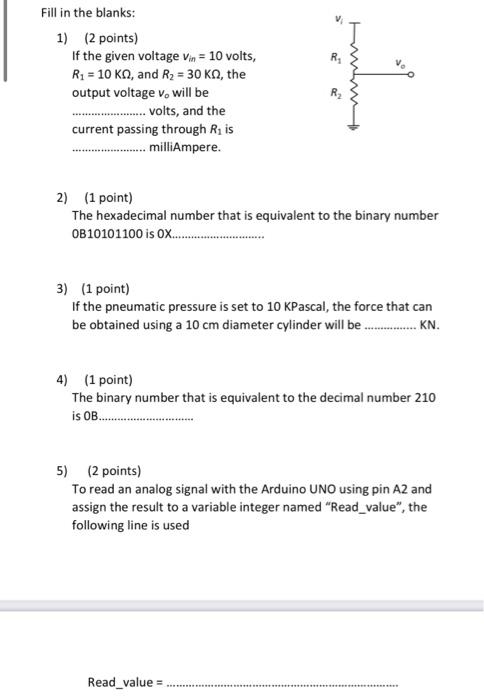

R Fill in the blanks: 1) (2 points) If the given voltage Vin = 10 volts, R1 = 10 K, and R2 = 30 Kg, the output voltage v, will be ......... volts, and the current passing through Ry is ....... milliAmpere. www 2) (1 point) The hexadecimal number that is equivalent to the binary number 0B10101100 is ox... 3) (1 point) If the pneumatic pressure is set to 10 KPascal, the force that can be obtained using a 10 cm diameter cylinder will be ............ KN. 4) (1 point) The binary number that is equivalent to the decimal number 210 is OB... 5) (2 points) To read an analog signal with the Arduino UNO using pin A2 and assign the result to a variable integer named "Read_value", the following line is used Read_value =
