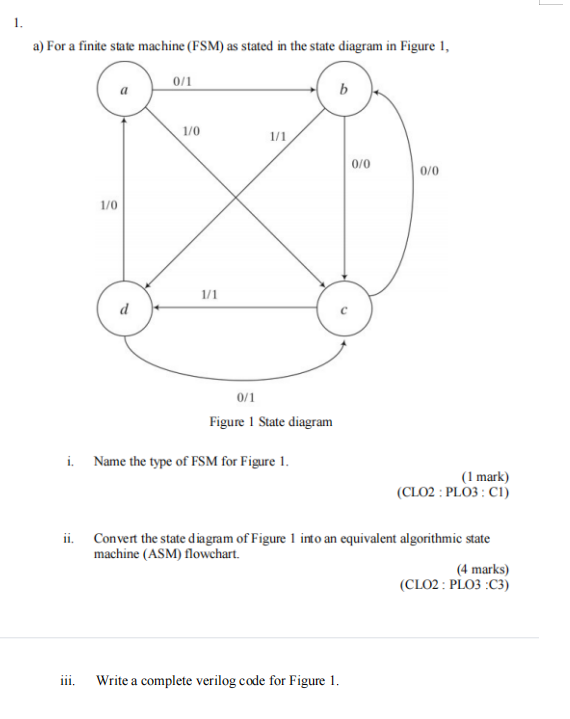

1. a) For a finite state machine (FSM) as stated in the state diagram in Figure 1, 0/1 b 1/0 1/1 0/0 0/0 1/0 1/1 d 0/1 F

[answerhappygod]

1 A For A Finite State Machine Fsm As Stated In The State Diagram In Figure 1 0 1 B 1 0 1 1 0 0 0 0 1 0 1 1 D 0 1 F 1 (83.98 KiB) Viewed 35 times

1. a) For a finite state machine (FSM) as stated in the state diagram in Figure 1, 0/1 b 1/0 1/1 0/0 0/0 1/0 1/1 d 0/1 Figure 1 State diagram i Name the type of FSM for Figure 1. (1 mark) (CLO2: PLO3: CI) ii. Convert the state diagram of Figure 1 into an equivalent algorithmic state machine (ASM) flowchart. (4 marks) (CLO2: PLO3 C3) iii. Write a complete verilog code for Figure 1.
