10. Refer to Figure 10. Assume the operational amplifiers in the circuit are ideal. The resistors R1 = R3 = 5 k12 and R2

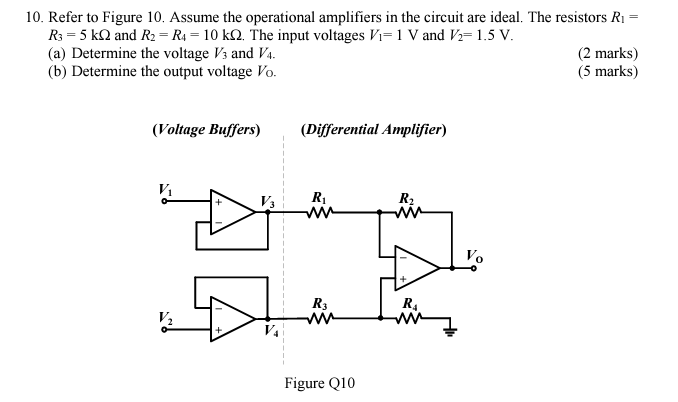

10. Refer to Figure 10. Assume the operational amplifiers in the circuit are ideal. The resistors R1 = R3 = 5 k12 and R2 = R4 = 10 k 2. The input voltages Vi=1 V and V2=1.5 V. (a) Determine the voltage V3 and V4. (2 marks) (b) Determine the output voltage Vo. (5 marks) (Voltage Buffers) (Differential Amplifier) R R2 V. R3 R4 V2 Figure Q10
