In the given DC circuit, a) Compute the open-circuit voltage (Voc) at terminals a-b by using node voltage method. b) Com

Post by answerhappygod »

In The Given Dc Circuit A Compute The Open Circuit Voltage Voc At Terminals A B By Using Node Voltage Method B Com 1
In The Given Dc Circuit A Compute The Open Circuit Voltage Voc At Terminals A B By Using Node Voltage Method B Com 1 (28.08 KiB) Viewed 31 times

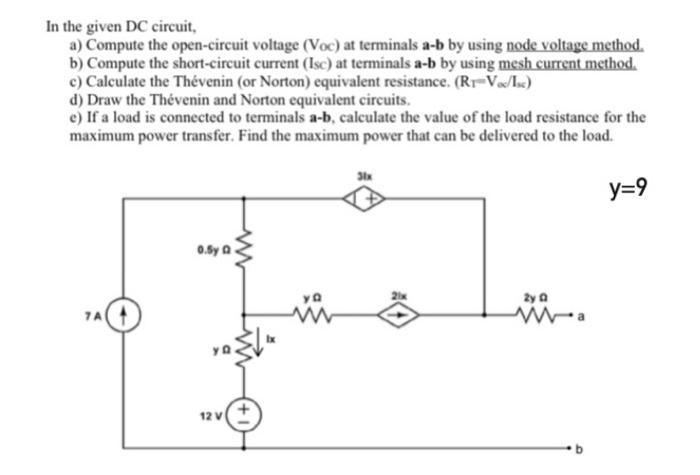

In the given DC circuit, a) Compute the open-circuit voltage (Voc) at terminals a-b by using node voltage method. b) Compute the short-circuit current (Isc) at terminals a-b by using mesh current method. c) Calculate the Thévenin (or Norton) equivalent resistance. (Re-Vo/I.) d) Draw the Thévenin and Norton equivalent circuits. e) If a load is connected to terminals a-b, calculate the value of the load resistance for the maximum power transfer. Find the maximum power that can be delivered to the load. y=9 0.8y ya w 2yo wa 7A 12 V
