8. Figure Q8 shows a common-collector amplifier. The circuit and transistor parameters are le= 2.5 mA, Rs = 0.5 k 2, VBE

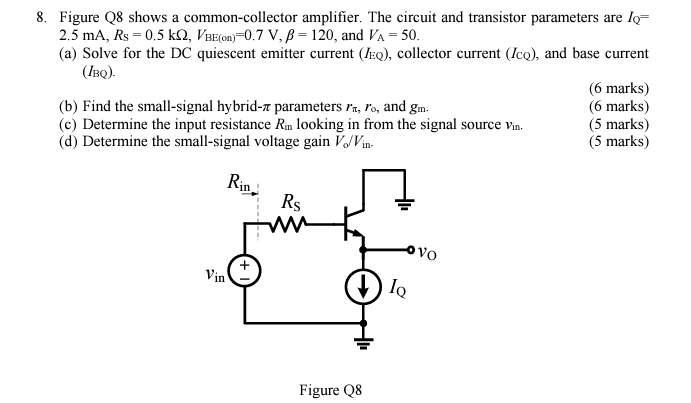

8. Figure Q8 shows a common-collector amplifier. The circuit and transistor parameters are le= 2.5 mA, Rs = 0.5 k 2, VBE(on=0.7 V,B= 120, and VA= 50. (a) Solve for the DC quiescent emitter current (IEQ), collector current (Icq), and base current (IBO). (6 marks) (b) Find the small-signal hybrid-i parameters r'n, l'o, and gm. (6 marks) (c) Determine the input resistance Rin looking in from the signal source Vin. (5 marks) (d) Determine the small-signal voltage gain V/V in (5 marks) Rin RS w VO Vin lo Figure Q8
