- 11 Figure Q11 A Shows A Filter Circuit V A Derive The Transfer Function H Jo 5 Marks V 6 Identify The Functio 1 (19.45 KiB) Viewed 28 times
11. Figure Q11 (a) shows a filter circuit. V (a) Derive the transfer function H(jo) (5 marks) V (6) Identify the functio
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
11. Figure Q11 (a) shows a filter circuit. V (a) Derive the transfer function H(jo) (5 marks) V (6) Identify the functio

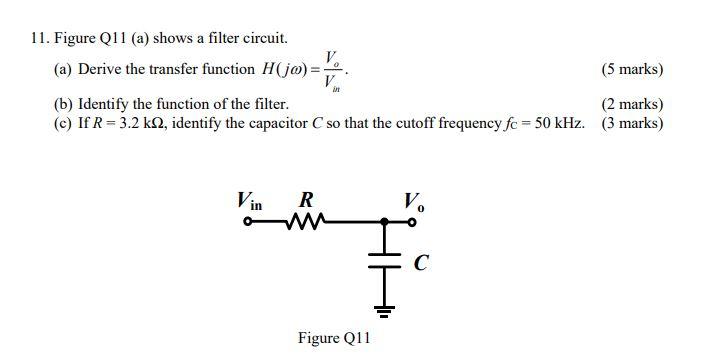

11. Figure Q11 (a) shows a filter circuit. V (a) Derive the transfer function H(jo) (5 marks) V (6) Identify the function of the filter. (2 marks) (e) If R=3.2 kN2, identify the capacitor C so that the cutoff frequency fc = 50 kHz. (3 marks) Vin V R W Figure Q11
