9. Refer to Figure 29. Assume that the capacitors Cci and Cc2 act as short circuits to ac signal. The parameters of the

[answerhappygod]

9 Refer To Figure 29 Assume That The Capacitors Cci And Cc2 Act As Short Circuits To Ac Signal The Parameters Of The 1 (34.82 KiB) Viewed 36 times

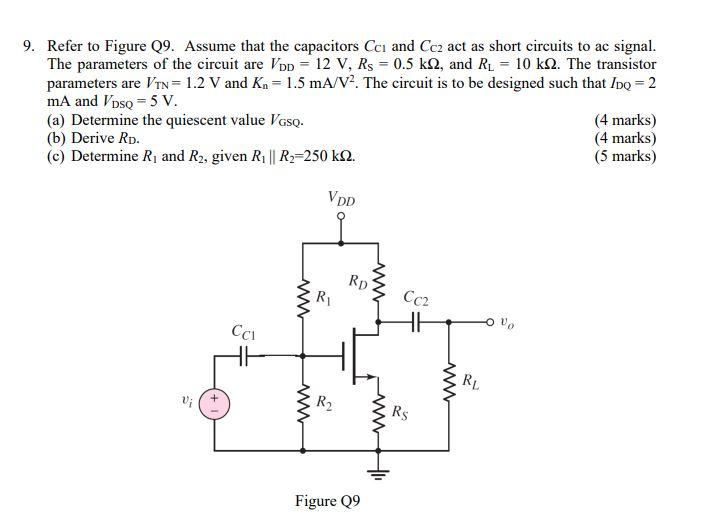

9. Refer to Figure 29. Assume that the capacitors Cci and Cc2 act as short circuits to ac signal. The parameters of the circuit are Vpp = 12 V, Rs = 0.5 k22, and Ru = 10 k12. The transistor parameters are Vin= 1.2 V and Kn = 1.5 mA/V2. The circuit is to be designed such that /po = 2 mA and Viso = 5 V. (a) Determine the quiescent value VGSQ. (4 marks) (b) Derive Rp. (4 marks) (c) Determine R, and R2, given R1 || R=250 k 2. (5 marks) VpD RD www RI Cc2 V. Ссі RL w www R2 RS Figure Q9
