Find K (the constant) for the magnitude characteristic plot shown in Fig. P12.31, given t1 = 3 rad/s, t2 = 5 rad/s, t3 =

[answerhappygod]

Find K The Constant For The Magnitude Characteristic Plot Shown In Fig P12 31 Given T1 3 Rad S T2 5 Rad S T3 1 (36.05 KiB) Viewed 43 times

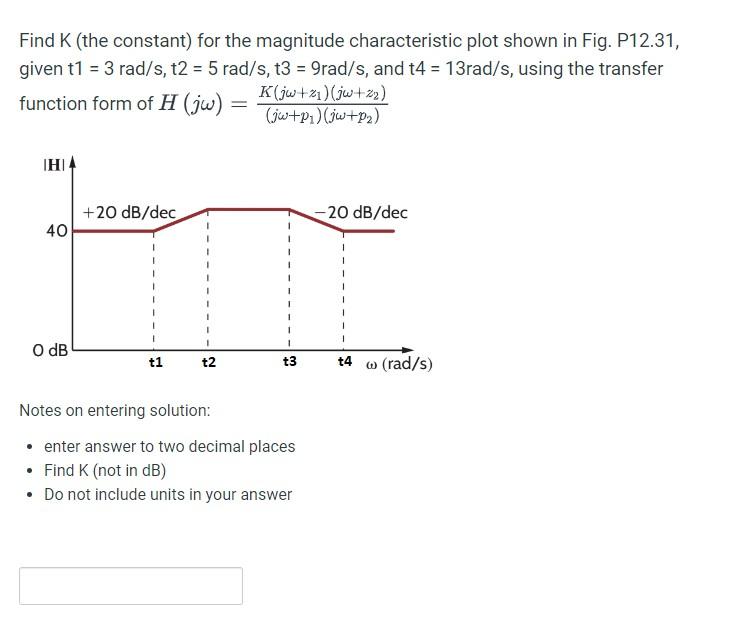

Find K (the constant) for the magnitude characteristic plot shown in Fig. P12.31, given t1 = 3 rad/s, t2 = 5 rad/s, t3 = 9rad/s, and t4 = 13rad/s, using the transfer K(w +1) (jw+22) function form of H (jw) (w+P:)(jw+P2) IHI +20 dB/dec -20 dB/dec 40 O dB t1 t2 t3 t4w (rad/s) Notes on entering solution: • enter answer to two decimal places • Find K (not in dB) • Do not include units in your answer
