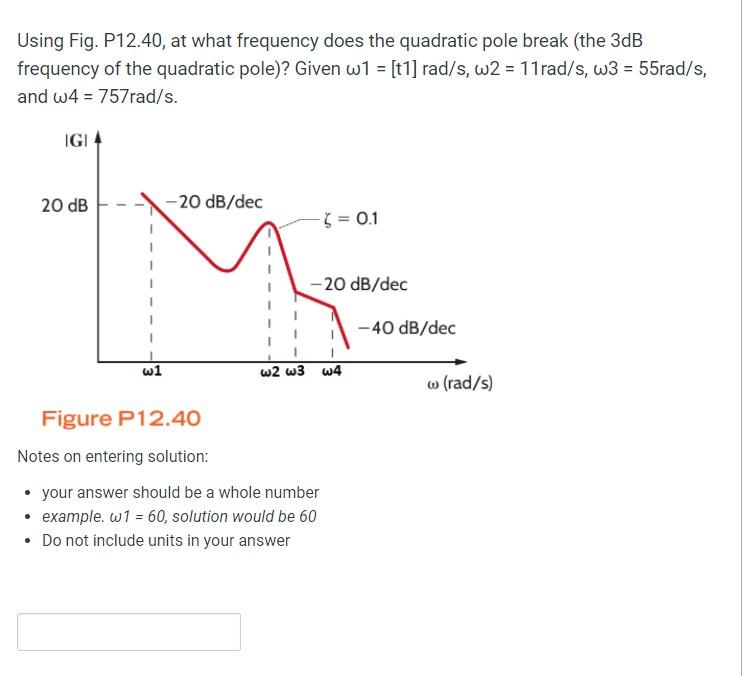

Using Fig. P12.40, at what frequency does the quadratic pole break (the 3dB frequency of the quadratic pole)? Given w1 =

[answerhappygod]

Using Fig P12 40 At What Frequency Does The Quadratic Pole Break The 3db Frequency Of The Quadratic Pole Given W1 1 (38.43 KiB) Viewed 31 times

Using Fig. P12.40, at what frequency does the quadratic pole break (the 3dB frequency of the quadratic pole)? Given w1 = [t1] rad/s, w2 = 11rad/s, w3 = 55rad/s, and w4 = 757rad/s. IGI 20 dB -20 dB/dec $ = 0.1 -20 dB/dec -40 dB/dec w1 w2 w3w4 w (rad/s) Figure P12.40 Notes on entering solution: • your answer should be a whole number • example. w1 = 60, solution would be 60 • Do not include units in your answer
