Part A At the time the switch is closed in the circuit, the voltage across the paralleled capacitors is 50 V and the vol

[answerhappygod]

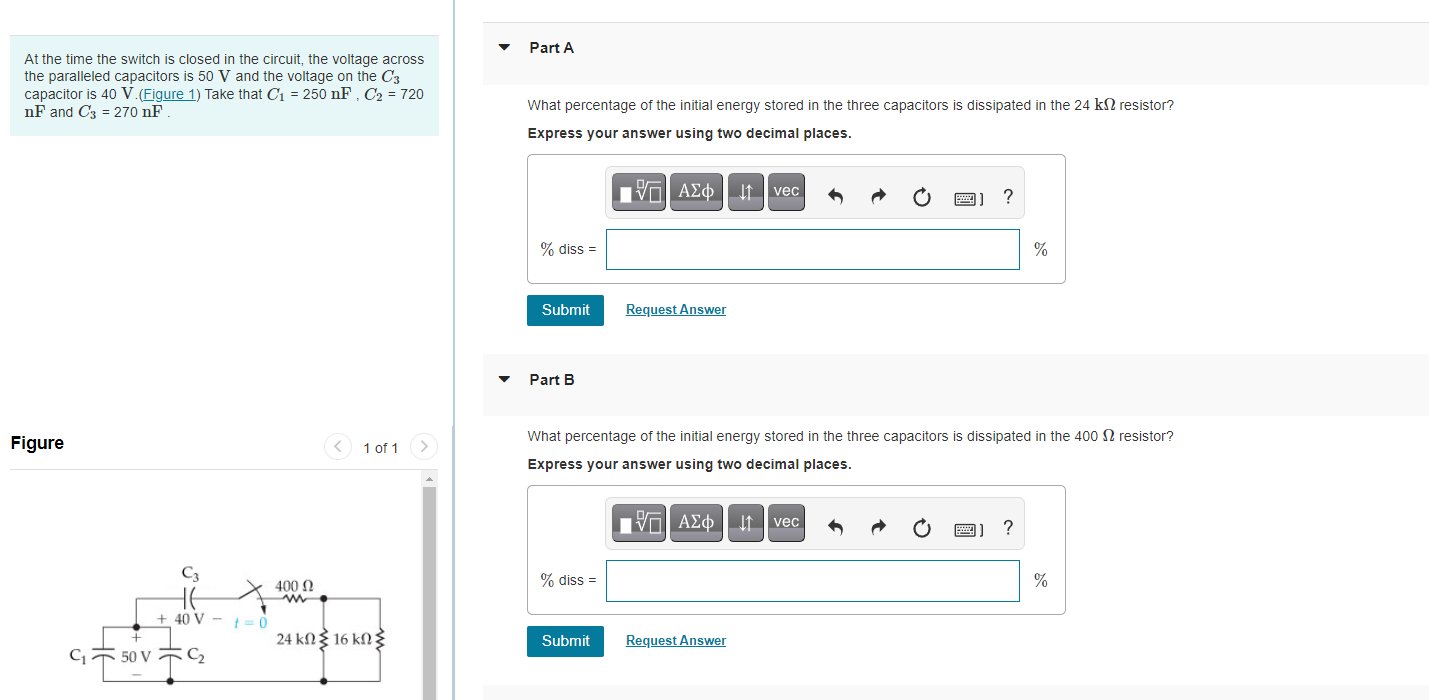

Part A At The Time The Switch Is Closed In The Circuit The Voltage Across The Paralleled Capacitors Is 50 V And The Vol 1 (66.91 KiB) Viewed 19 times

Part A At the time the switch is closed in the circuit, the voltage across the paralleled capacitors is 50 V and the voltage on the Cz capacitor is 40 V. (Figure 1) Take that C = 250 nF, C2 = 720 nF and C3 = 270 nF What percentage of the initial energy stored in the three capacitors is dissipated in the 24 k2 resistor? Express your answer using two decimal places. ΡΕΙ ΑΣΦ tvec ? % diss = % Submit Request Answer Part B Figure < 1 of 1 What percentage of the initial energy stored in the three capacitors is dissipated in the 400 12 resistor? Express your answer using two decimal places. V AEO Utvec ? 400 Ω % diss = % + 40 V =0 24 kΩξ 16 kΩξ Submit Request Answer G750 V C2
