7. Refer to Figure Q7. The resistor R= 100 s2, the Zener diode breakdown voltage is Vz=5 V, and the power rating of the
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
7. Refer to Figure Q7. The resistor R= 100 s2, the Zener diode breakdown voltage is Vz=5 V, and the power rating of the

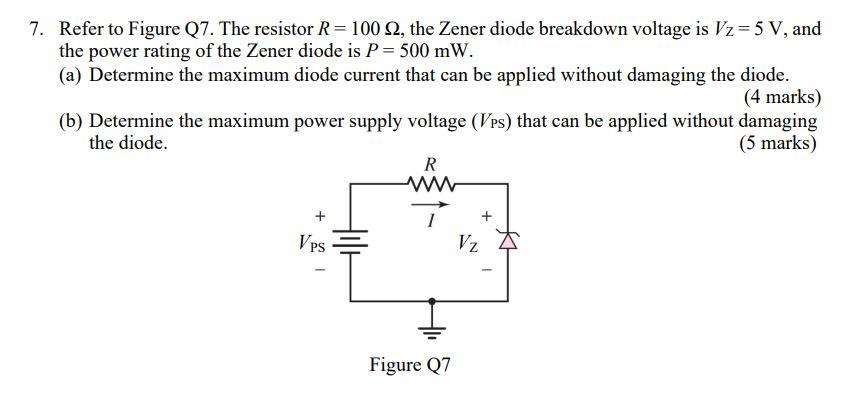

7. Refer to Figure Q7. The resistor R= 100 s2, the Zener diode breakdown voltage is Vz=5 V, and the power rating of the Zener diode is P = 500 mW. (a) Determine the maximum diode current that can be applied without damaging the diode. (4 marks) (b) Determine the maximum power supply voltage (Vps) that can be applied without damaging the diode. (5 marks) R www + VPS V2 Figure Q7
