= 10. Refer to Figure 10. Assume the operational amplifiers in the circuit are ideal. The resistors R1 = R3 = 5 ks2 and

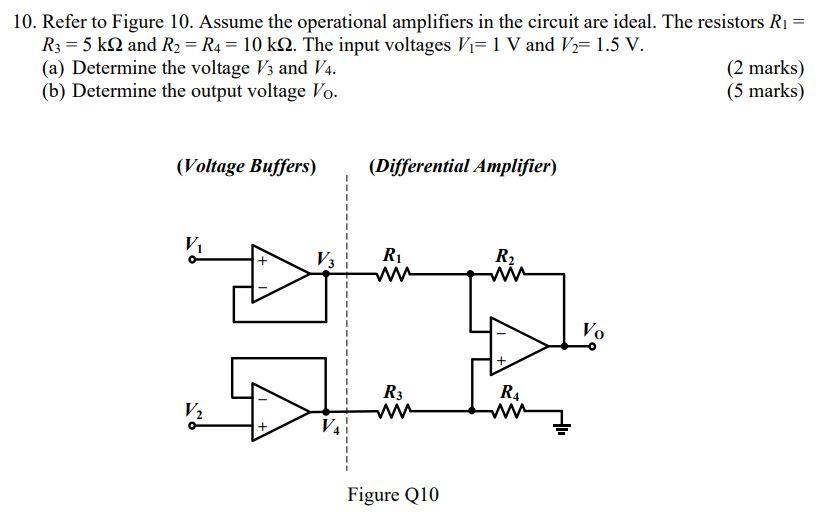

= 10. Refer to Figure 10. Assume the operational amplifiers in the circuit are ideal. The resistors R1 = R3 = 5 ks2 and R2 = R4 = 10 k12. The input voltages Vi=1 V and V2= 1.5 V. (a) Determine the voltage V3 and V4. (2 marks) (b) Determine the output voltage Vo. (5 marks) (Voltage Buffers) (Differential Amplifier) R R2 w Vo R3 R4 V2 Figure Q10
