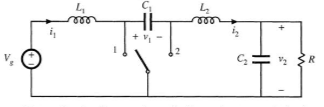

For The Converter In The Figure A Determine The Current And Voltage Waveforms Of The Capacitors And Coils B Calculat 1 (12.64 KiB) Viewed 26 times
a) Determine the current and voltage waveforms of the capacitors
and coils.
b) Calculate the transfer function of the converter for both
capacitor charge balance, assuming that it operates in CCM all the
time.
c) Define which semiconductor devices make up the circuit, make
a qualitative analysis that justifies your choice.
L 000 L. H R
