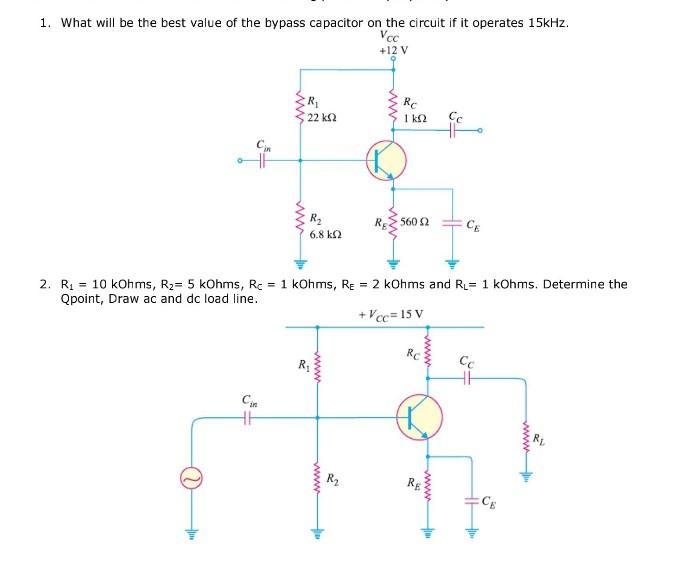

1. What will be the best value of the bypass capacitor on the circuit if it operates 15kHz. Voc +12 V ww R 22 ΚΩ Rc 1kΩ
-
