(b) A circuit consists of one ideal rectifier diode and a transformer is shown in Fig B4(b). Determine: 15:1 D1 X Vpri V

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(b) A circuit consists of one ideal rectifier diode and a transformer is shown in Fig B4(b). Determine: 15:1 D1 X Vpri V

Post by answerhappygod »

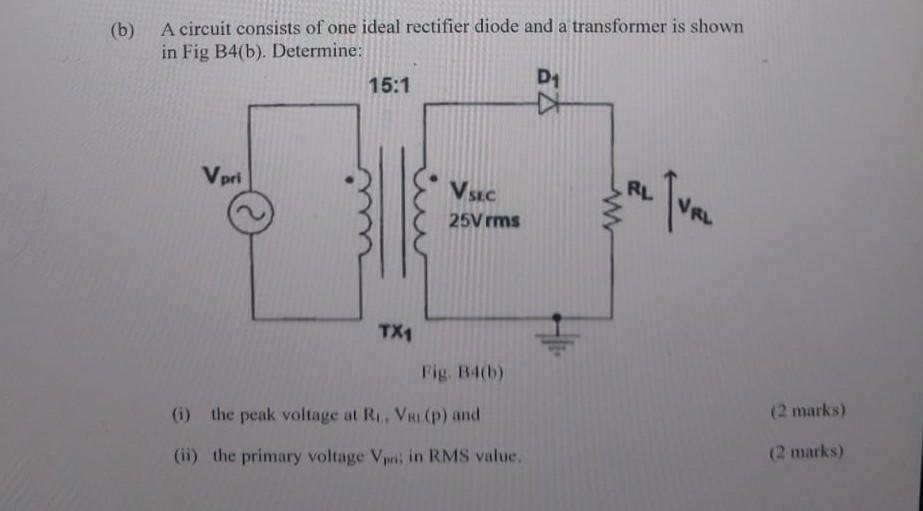

B A Circuit Consists Of One Ideal Rectifier Diode And A Transformer Is Shown In Fig B4 B Determine 15 1 D1 X Vpri V 1
B A Circuit Consists Of One Ideal Rectifier Diode And A Transformer Is Shown In Fig B4 B Determine 15 1 D1 X Vpri V 1 (32.42 KiB) Viewed 26 times
(b) A circuit consists of one ideal rectifier diode and a transformer is shown in Fig B4(b). Determine: 15:1 D1 X Vpri VSC RL w - [URL 25V rms TX1 Fig. B4(b) (2 marks) (i) the peak voltage at R. V. (p) and (ii) the primary voltage Vin RMS value. (2 marks)
