Figure 3.2 shows all of the different outputs that the seven segment decoder should produce. Shade in the segments that

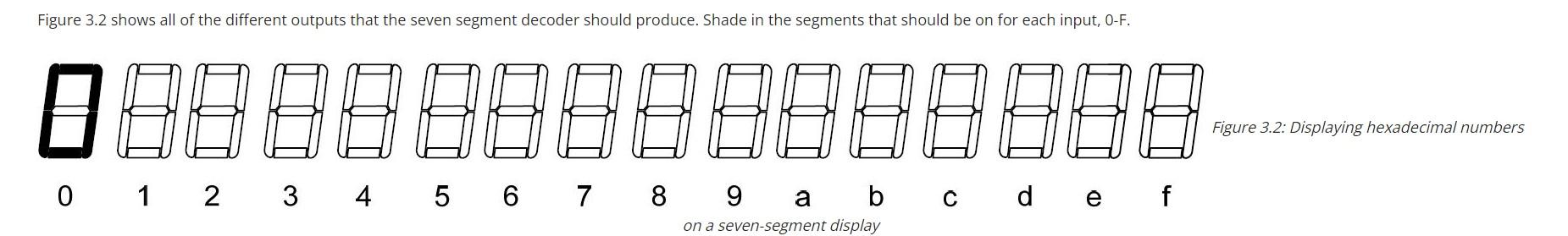

Figure 3.2 shows all of the different outputs that the seven segment decoder should produce. Shade in the segments that should be on for each input, O-F. 0888888888888888 Figure 3.2: Displaying hexadecimal numbers 0 1 2 3 4 5 6 7 8 9 a b c d e f on a seven-segment display
