Problem 5 (4 points): The siphon in Figure 4 is a pipe of diameter D=0.4 m with roughness ε = 0.4 mm. - Calculate the fl
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Problem 5 (4 points): The siphon in Figure 4 is a pipe of diameter D=0.4 m with roughness ε = 0.4 mm. - Calculate the fl

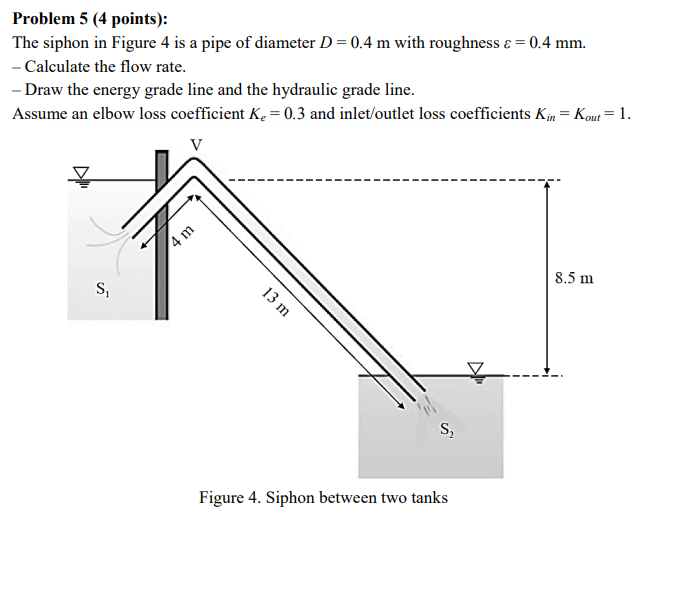

Problem 5 (4 points): The siphon in Figure 4 is a pipe of diameter D=0.4 m with roughness ε = 0.4 mm. - Calculate the flow rate. - Draw the energy grade line and the hydraulic grade line. Assume an elbow loss coefficient Ke=0.3 and inlet/outlet loss coefficients Kin = Kout= 1. V 4 m 8.5 m S. 13 m S, Figure 4. Siphon between two tanks
