Part A The steel bar AB of the frame is assumed to be pin con- nected at its ends for y-y axis buckling. (Figure 1) If P

[answerhappygod]

Part A The Steel Bar Ab Of The Frame Is Assumed To Be Pin Con Nected At Its Ends For Y Y Axis Buckling Figure 1 If P 1 (82.49 KiB) Viewed 26 times

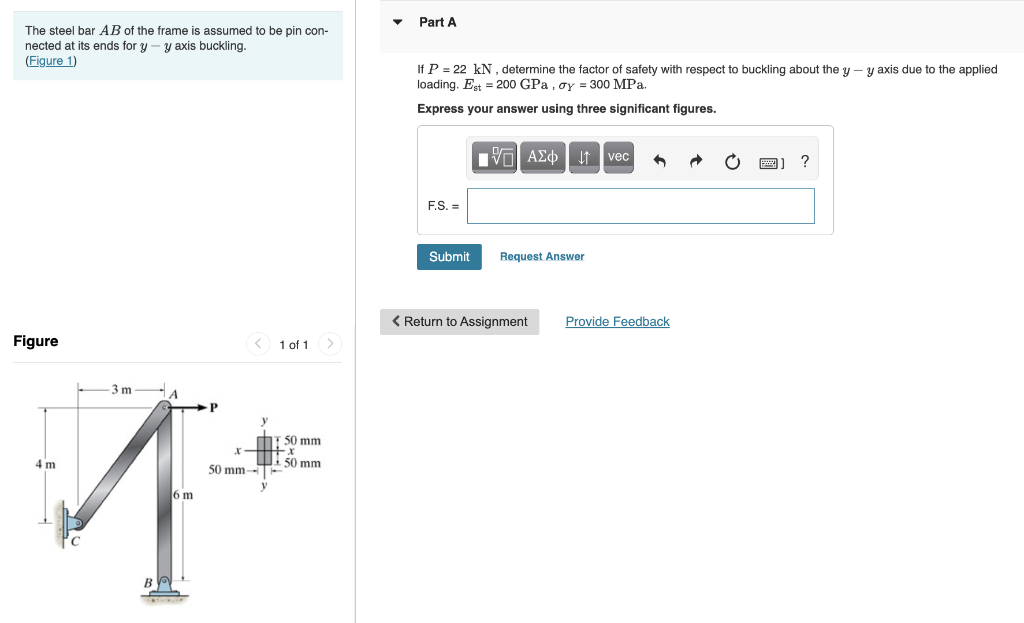

Part A The steel bar AB of the frame is assumed to be pin con- nected at its ends for y-y axis buckling. (Figure 1) If P = 22 kN, determine the factor of safety with respect to buckling about the y-y axis due to the applied loading. Est = 200 GPa , oy = 300 MPa. Express your answer using three significant figures. VA I vec ? F.S. = Submit Request Answer < Return to Assignment Provide Feedback Figure < 1 of 1 > 3 m A 50 mm +x 50 mm 4 m 50 mm - m в о
