PART I: No partial credit. Show your work to receive credit. 1. (8 points) The straight beam with cross section shown is

Post by answerhappygod »

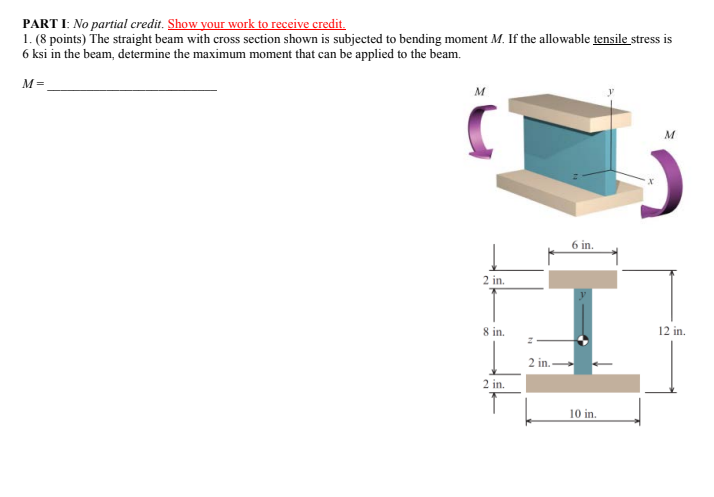

Part I No Partial Credit Show Your Work To Receive Credit 1 8 Points The Straight Beam With Cross Section Shown Is 1
Part I No Partial Credit Show Your Work To Receive Credit 1 8 Points The Straight Beam With Cross Section Shown Is 1 (70.19 KiB) Viewed 22 times
PART I: No partial credit. Show your work to receive credit. 1. (8 points) The straight beam with cross section shown is subjected to bending moment M. If the allowable tensile stress is 6 ksi in the beam, determine the maximum moment that can be applied to the beam. M = M M 2 in. 8 in. 2 in. 2 in.. 6 in. 10 in. 12 in.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
