4. The 3 in. diameter A-36 structural steel shaft is supported by a smooth thrust bearing at A and a smooth journal bear

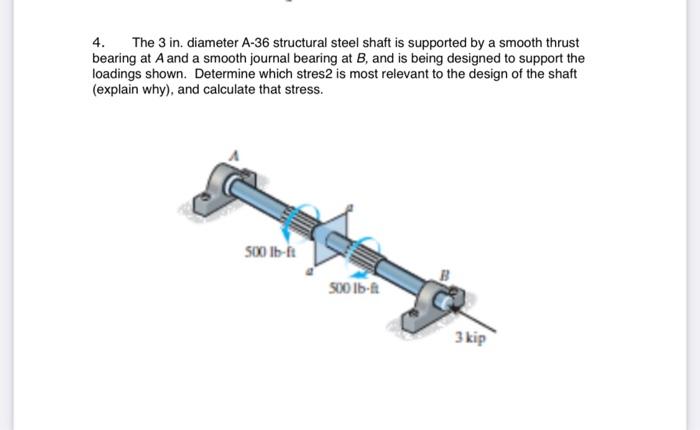

4. The 3 in. diameter A-36 structural steel shaft is supported by a smooth thrust bearing at A and a smooth journal bearing at B, and is being designed to support the loadings shown. Determine which stres2 is most relevant to the design of the shaft (explain why), and calculate that stress. SOO lb-ft SOO lb-ft 3 kip
