Concrete wall 30 cm thick has 10 cm wide void (area 0.1 m²) in the middle as shown. Find temperature difference between

Post by answerhappygod »

Concrete Wall 30 Cm Thick Has 10 Cm Wide Void Area 0 1 M In The Middle As Shown Find Temperature Difference Between 1
Concrete Wall 30 Cm Thick Has 10 Cm Wide Void Area 0 1 M In The Middle As Shown Find Temperature Difference Between 1 (20.05 KiB) Viewed 26 times

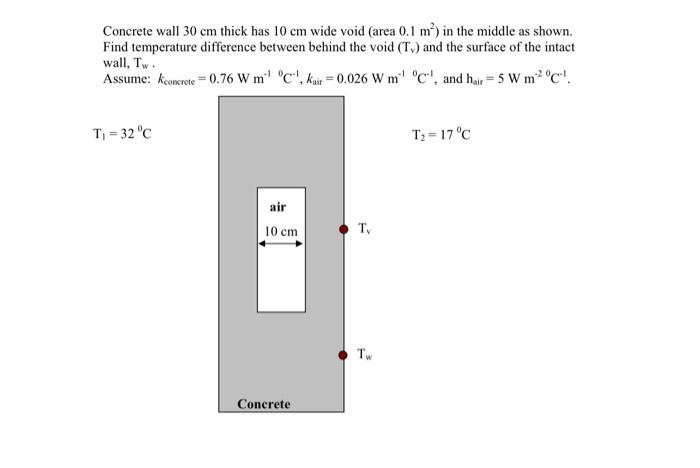

Concrete wall 30 cm thick has 10 cm wide void (area 0.1 m²) in the middle as shown. Find temperature difference between behind the void (T.) and the surface of the intact wall, T. Assume: Kconcrete = 0.76 W mºc!, Kair=0.026 W mºc!, and hair = 5 W m2 °C! T, = 32'c T, -17 °C air 10 cm TO TW Concrete
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
