The siphon in Figure 4 is a pipe of diameter D = 0.4 m with roughness ε = 0.4 mm. - Calculate the flow rate. – Draw the
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The siphon in Figure 4 is a pipe of diameter D = 0.4 m with roughness ε = 0.4 mm. - Calculate the flow rate. – Draw the

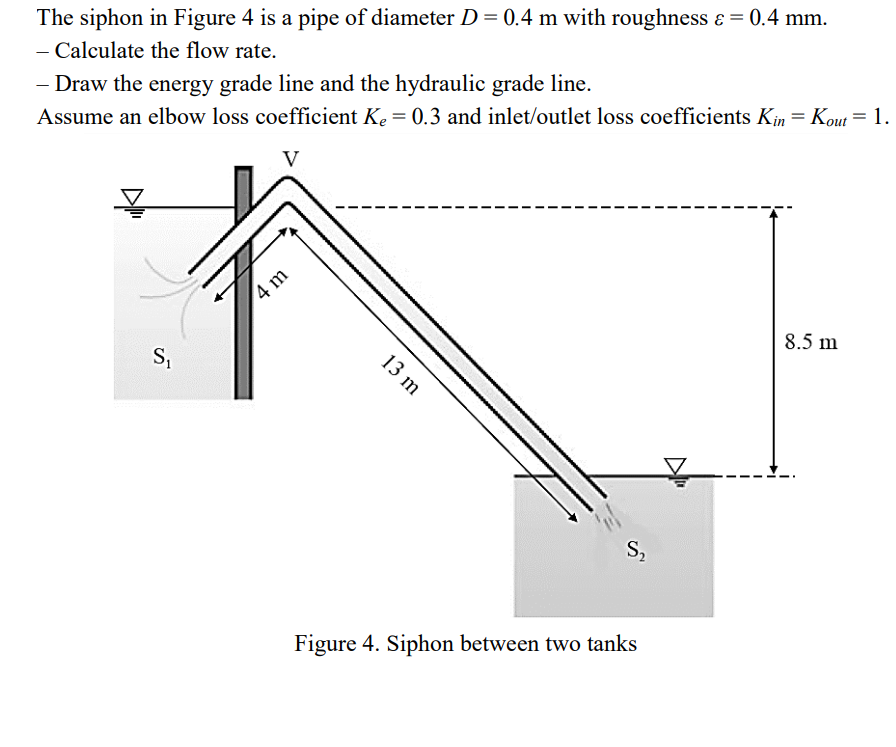

The siphon in Figure 4 is a pipe of diameter D = 0.4 m with roughness ε = 0.4 mm. - Calculate the flow rate. – Draw the energy grade line and the hydraulic grade line. Assume an elbow loss coefficient Ke = 0.3 and inlet/outlet loss coefficients Kin= Kout = 1. V 플 4 m 8.5 m S, 13 m S, Figure 4. Siphon between two tanks
