Question 6 (20marks) For the non-sway Portal frame shown in Figure 6, determine the reaction forces and draw the shear a

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 6 (20marks) For the non-sway Portal frame shown in Figure 6, determine the reaction forces and draw the shear a

Post by answerhappygod »

Question 6 20marks For The Non Sway Portal Frame Shown In Figure 6 Determine The Reaction Forces And Draw The Shear A 1
Question 6 20marks For The Non Sway Portal Frame Shown In Figure 6 Determine The Reaction Forces And Draw The Shear A 1 (22.73 KiB) Viewed 33 times

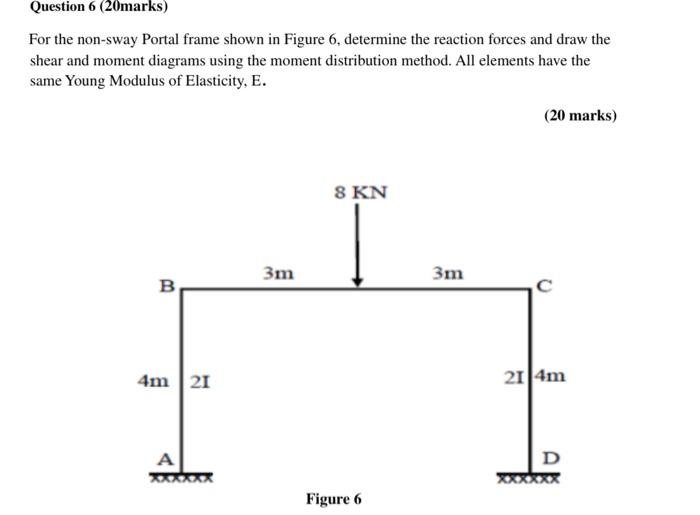

Question 6 (20marks) For the non-sway Portal frame shown in Figure 6, determine the reaction forces and draw the shear and moment diagrams using the moment distribution method. All elements have the same Young Modulus of Elasticity, E. (20 marks) 8 KN Зm 3m B 4m 21 21|4m A D XXXXXX Figure 6
