QUESTION 2 (30 marks) Given the structure shown in Figure 2, use the Portal Method to: i. Draw the bending moment diagra

[answerhappygod]

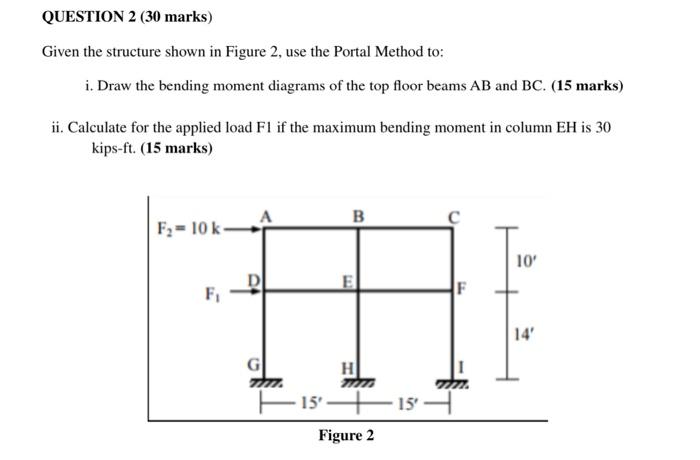

Question 2 30 Marks Given The Structure Shown In Figure 2 Use The Portal Method To I Draw The Bending Moment Diagra 1 (24.48 KiB) Viewed 30 times

QUESTION 2 (30 marks) Given the structure shown in Figure 2, use the Portal Method to: i. Draw the bending moment diagrams of the top floor beams AB and BC. (15 marks) ii. Calculate for the applied load F1 if the maximum bending moment in column EH is 30 kips-ft. (15 marks) B F2 = 10k- 10 E F F 14' G H -15- 15 Figure 2
