given the information in the photo, I don't have any other
information. You should be able to solve it using moment and force
equations. Along with using the coordinates to find the lengths of
the struts. Thank you so much!
- Please Show How You Got Each Component In The Struts I Was Only Given The Information In The Photo I Don T Have Any Ot 1 (32.76 KiB) Viewed 31 times
- Please Show How You Got Each Component In The Struts I Was Only Given The Information In The Photo I Don T Have Any Ot 2 (65.79 KiB) Viewed 31 times
move in the right direction and give you an idea of what to do.
Please ask for something specific if it's missing.

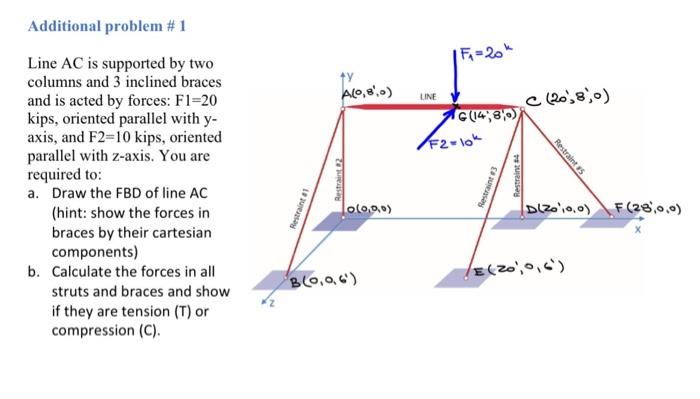

Additional problem #1 1F=204 A(0,8'.-) LINE c (20; 8;o) 7614,80) /F2-104 Restito2 Line AC is supported by two columns and 3 inclined braces and is acted by forces: Fl=20 kips, oriented parallel with y- axis, and F2=10 kips, oriented parallel with z-axis. You are required to: a. Draw the FBD of line AC (hint: show the forces in braces by their cartesian components) b. Calculate the forces in all struts and braces and show if they are tension (T) or compression (C). Restraint 4 Restraints Restraint3 Restraint 31 Lolo,0,0) Dlzoo.o) F(28,0,0) 8(20, 0,5') BLO,0.6)

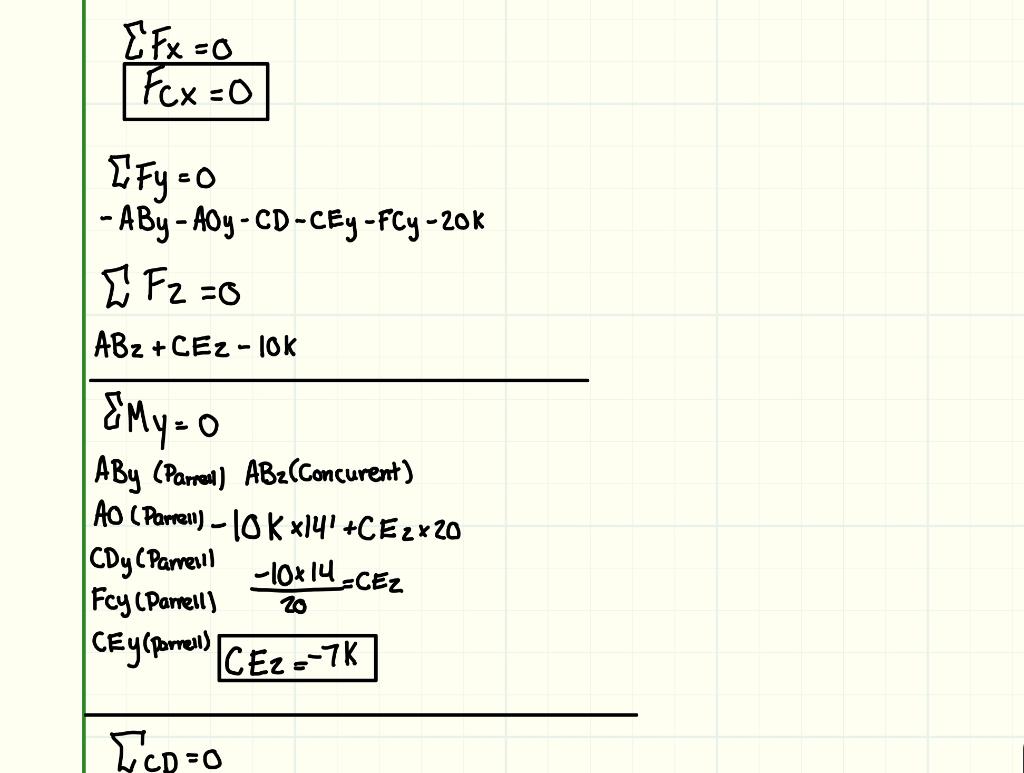

Σ Fx = 0 Fcx=0 Σ Fy=O -ABy-AOy-CD-CEy-FCy-20k F₂=0 ABz+CE2 - 10k & My = 0 ABy (Parra) AB₂ (Concurent) AO (Parrell)-10k x14¹ +CE ₂ x 20 CDy (Parrell -10x14 =CEZ Fcy (Parrell) CEy(pormell) CE2=-7K TCD=O
ABz A(0,8,0) ABY AO AOY (0 (0,0,0) 141 6 B(0,0,6) 81 20¹ /F₁= 20K G(14.8.0) F2=10k CEZ .C (20,8,0) CEY FCx CD CDy D(20,0.6) 81 CE "E(20,0,6) FC F (28,0,0)
