Use Truss by Sections Method. VALUES FOUND IN PART I CANNOT BE USED TO SOLVE PART II. VALUES FOUND IN PART I CANNOT BE U

[answerhappygod]

Use Truss By Sections Method Values Found In Part I Cannot Be Used To Solve Part Ii Values Found In Part I Cannot Be U 1 (73.49 KiB) Viewed 30 times

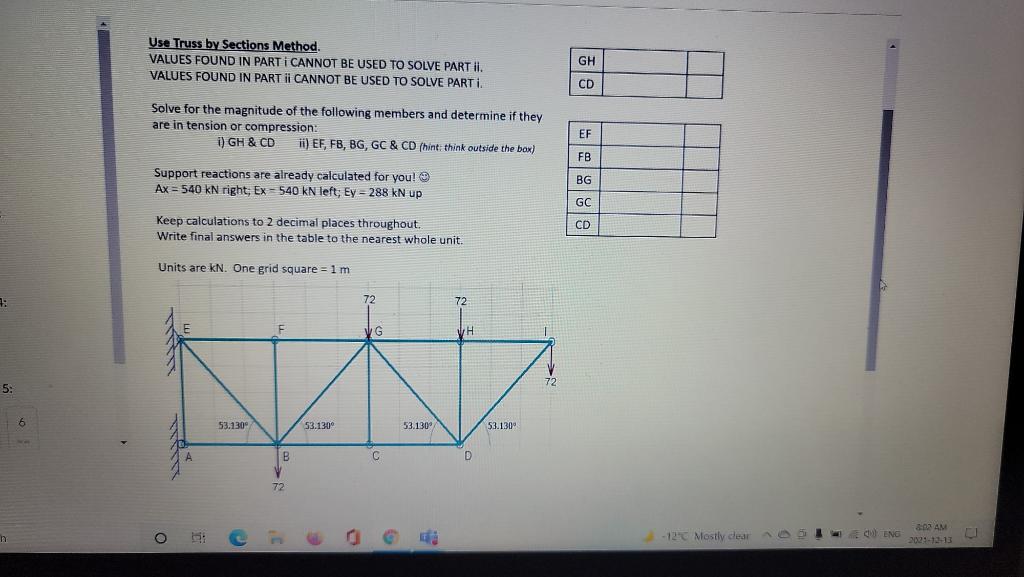

Use Truss by Sections Method. VALUES FOUND IN PART I CANNOT BE USED TO SOLVE PART II. VALUES FOUND IN PART I CANNOT BE USED TO SOLVE PARTI. GH CD Solve for the magnitude of the following members and determine if they are in tension or compression: i) GH & CD ii) EF, FB, BG, GC & CD (hint think outside the box) EF FB Support reactions are already calculated for you! Ax = 540 kN right; Ex - 540 kN left: Ey = 288 kN up BG GC Keep calculations to 2 decimal places throughout. Write final answers in the table to the nearest whole unit. CD Units are kN. One grid square = 1 m 7: 72 72 IG VH 72 5: 6 53.130 53.130 53.130 53.130 C D B W 72 8:03 AM 12 Mostly dear ENG 2012-13
