displacement in beams. Consider the cantilever beam shown in (Figure 1). Suppose that I AB = 780(106) mm", IBC = 150(106

[answerhappygod]

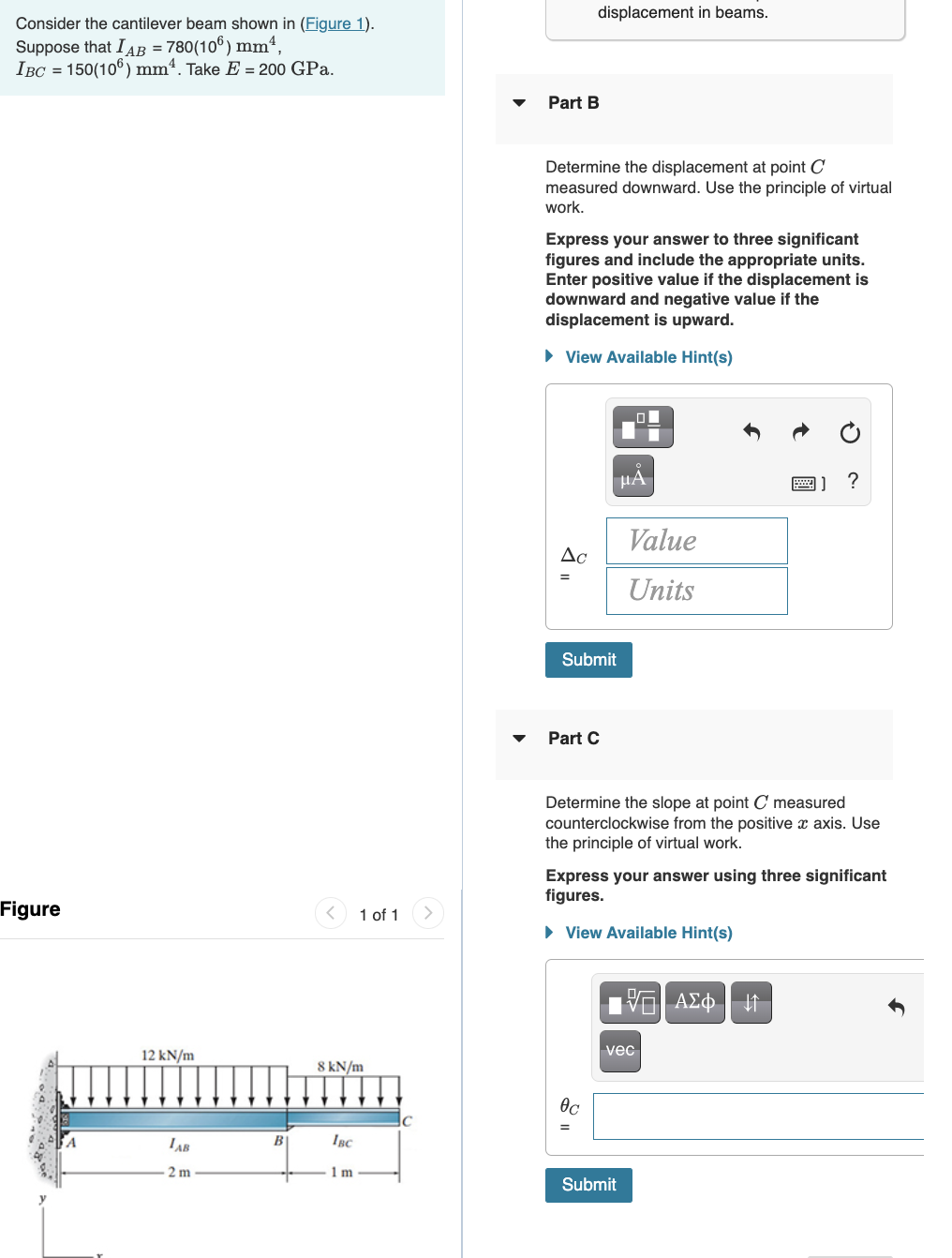

Displacement In Beams Consider The Cantilever Beam Shown In Figure 1 Suppose That I Ab 780 106 Mm Ibc 150 106 1 (161.45 KiB) Viewed 33 times

displacement in beams. Consider the cantilever beam shown in (Figure 1). Suppose that I AB = 780(106) mm", IBC = 150(106) mm4. Take E = 200 GPa. Part B Determine the displacement at point C measured downward. Use the principle of virtual work. Express your answer to three significant figures and include the appropriate units. Enter positive value if the displacement is downward and negative value if the displacement is upward. ► View Available Hint(s) → μΑ ? Value Ac Units Submit Part C Determine the slope at point C measured counterclockwise from the positive x axis. Use the principle of virtual work. Express your answer using three significant figures. Figure 1 of 1 View Available Hint(s) ΟΙ ΑΣΦ | 11 12 kN/m vec 8 kN/m өс = TAB B IBC 2 m 1 m Submit
