Process-Oriented Problem 09.001 - Composite areas - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS NOTE: This is a mult

[answerhappygod]

Process Oriented Problem 09 001 Composite Areas Dependent Multi Part Problem Assign All Parts Note This Is A Mult 1 (38.18 KiB) Viewed 36 times

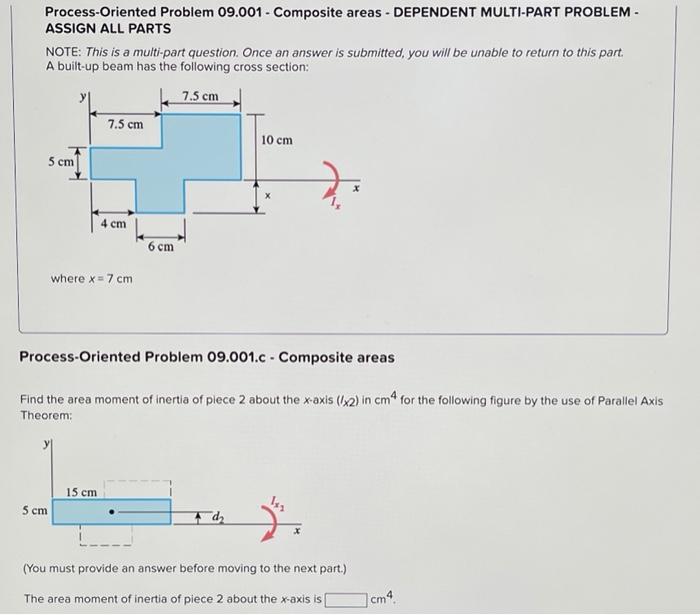

Process-Oriented Problem 09.001 - Composite areas - DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm 4 cm 6 cm where x = 7 cm Process-Oriented Problem 09.001.C - Composite areas Find the area moment of inertia of plece 2 about the x-axis (x2) in cm4 for the following figure by the use of Parallel Axls Theorem; 15 cm 132 5 cm Td (You must provide an answer before moving to the next part.) The area moment of inertia of piece 2 about the x-axis is 1cm4
