3. All the units used are in kPa. (a) Find the magnitude of the principal stress, and og in the element (A). and then co

[answerhappygod]

3 All The Units Used Are In Kpa A Find The Magnitude Of The Principal Stress And Og In The Element A And Then Co 1 (147.71 KiB) Viewed 34 times

soil engineering
mohr circle and failure
the answer is below

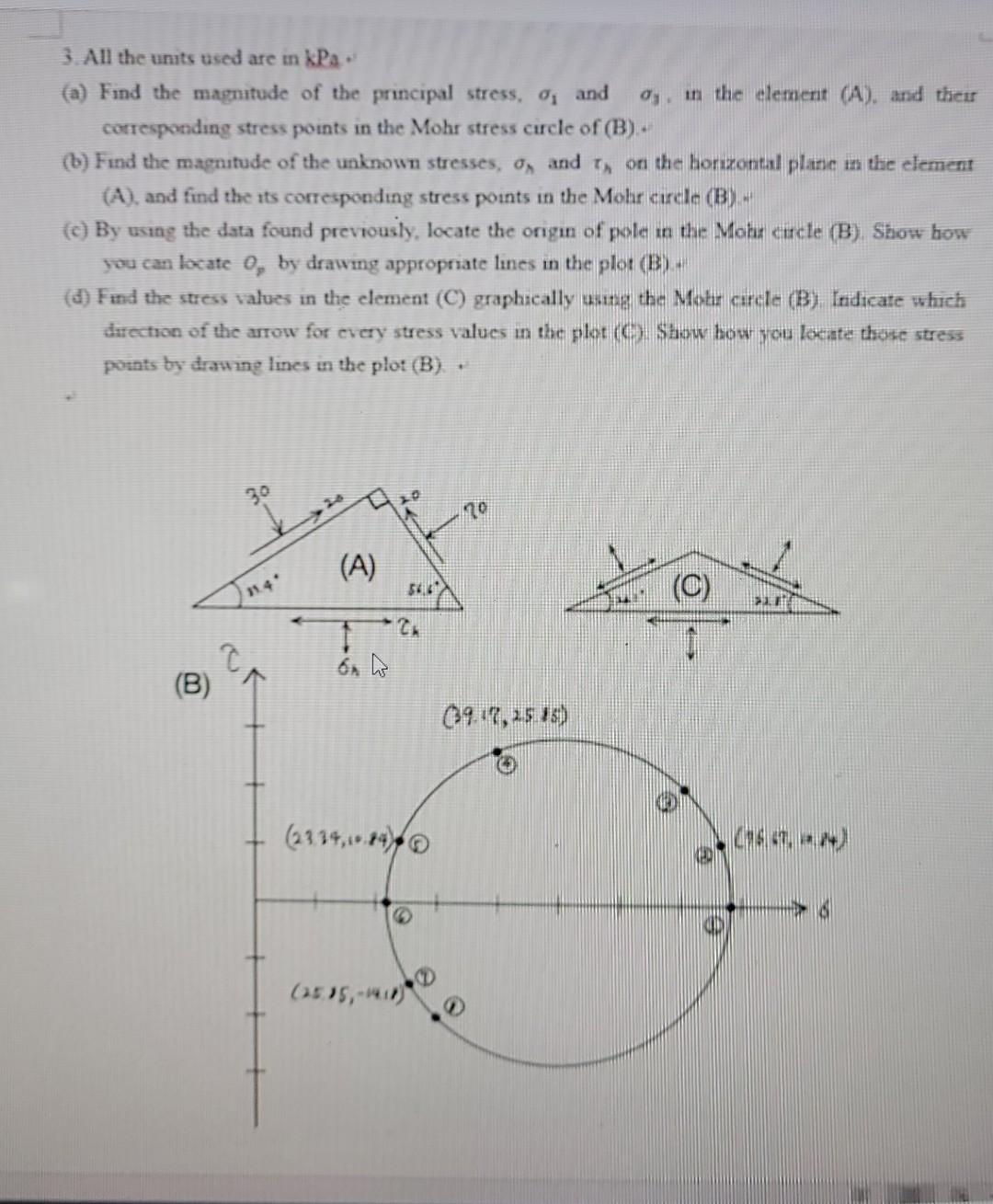

3. All the units used are in kPa. (a) Find the magnitude of the principal stress, and og in the element (A). and then corresponding stress points in the Mohr stress circle of (B). (b) Find the magnitude of the unknown stresses, on and on the horizontal plane in the element (A), and find the its corresponding stress points in the Mohr curele (B) © By using the data found previously locate the origin of pole in the Mohr eucle (B) Show how you can locate O, by drawing appropriate lines in the plot (B) (d) Fid the stress values in the element (C) graphically ung the Mohir curele (B) Indicate which direction of the arrow for every stress values in the plot (Show how you locate those stress points by drawing lines in the plo: (B).. 30 70 (A) 114 (C) ch 6. h (B) 09.17,25 25) (23.34,10.1999 - (3535,-
