7. A load P = 32 kN is applied parallel to the longitudinal axis of a rectangular structural tube as shown in Figure 7-a

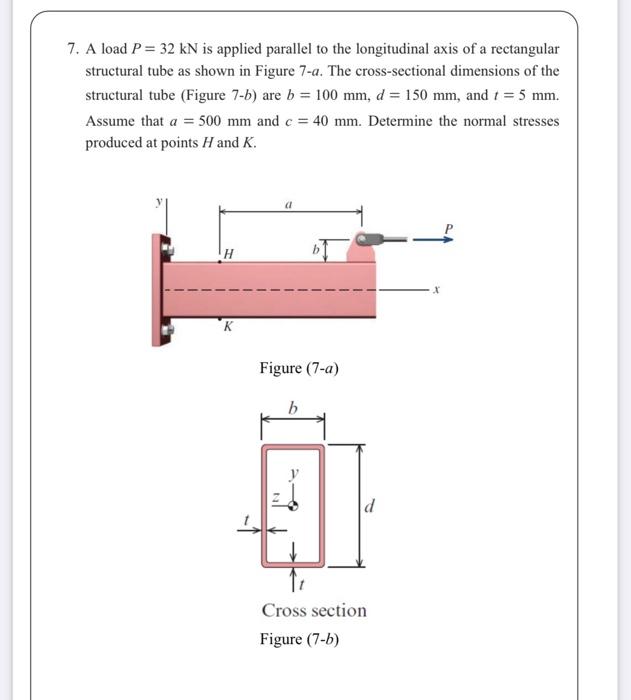

7. A load P = 32 kN is applied parallel to the longitudinal axis of a rectangular structural tube as shown in Figure 7-a. The cross-sectional dimensions of the structural tube (Figure 7-6) are b = 100 mm, d = 150 mm, and 1 = 5 mm. Assume that a = 500 mm and c = 40 mm. Determine the normal stresses produced at points H and K. H K Figure (7-a) b d Cross section Figure (7-6)
