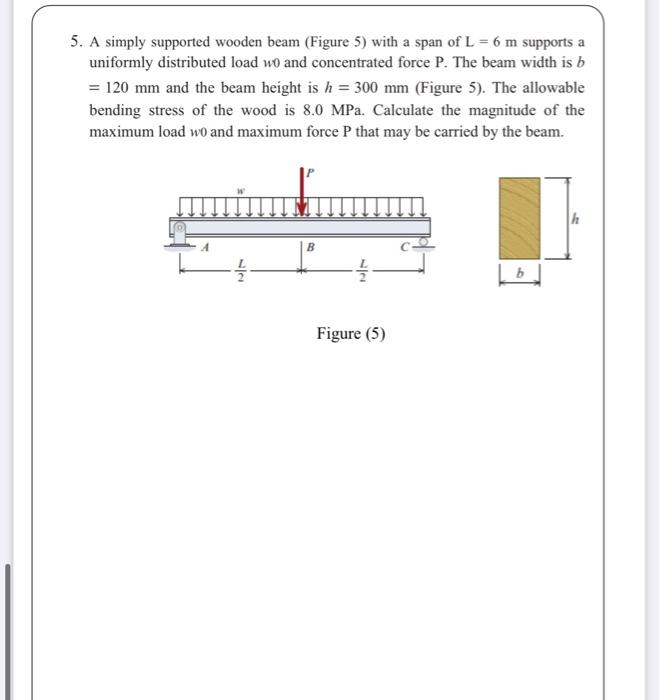

5. A simply supported wooden beam (Figure 5) with a span of L = 6 m supports a uniformly distributed load wo and concentrated force P. The beam width is b = 120 mm and the beam height is h = 300 mm (Figure 5). The allowable bending stress of the wood is 8.0 MPa. Calculate the magnitude of the maximum load wo and maximum force P that may be carried by the beam. h B Figure (5)
