You are required (before completing any analysis by hand or
using GSA) to qualitatively
draw the deflected shape, bending moment, shear force and axial
force diagrams.

You should then change the supports from encastre to pin supports
and repeat the same
qualitative exercise described above.

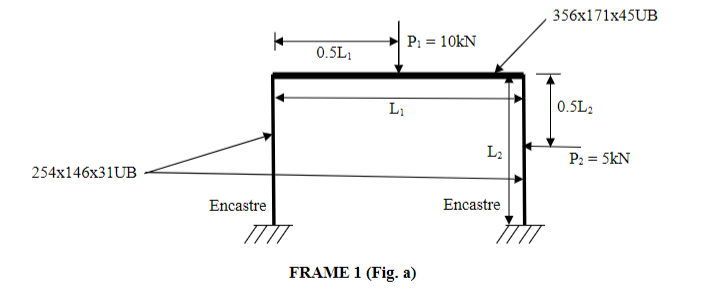

You Are Required Before Completing Any Analysis By Hand Or Using Gsa To Qualitatively Draw The Deflected Shape Bendin 1
You Are Required Before Completing Any Analysis By Hand Or Using Gsa To Qualitatively Draw The Deflected Shape Bendin 1 (23.55 KiB) Viewed 34 times
356x171x45UB P = 10KN 0.5L Li 0.5L L2 P, = 5kN 254x146x31UB Encastre Encastre FRAME 1 (Fig. a)
