>g(t) C1 E 02 E ki WHITE www k2 WHAT A rigid block of mass m is connected to a moving support on the left by a spring of

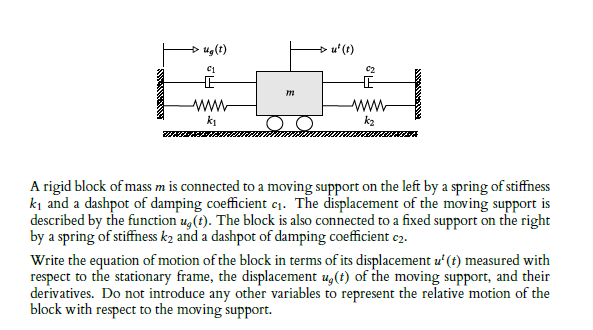

>g(t) C1 E 02 E ki WHITE www k2 WHAT A rigid block of mass m is connected to a moving support on the left by a spring of stiffness kı and a dashpot of damping coefficient c. The displacement of the moving support is described by the function ug (t). The block is also connected to a fixed support on the right by a spring of stiffness k2 and a dashpot of damping coefficient c2. Write the equation of motion of the block in terms of its displacement u' (t) measured with respect to the stationary frame, the displacement ug(t) of the moving support, and their derivatives. Do not introduce any other variables to represent the relative motion of the block with respect to the moving support.
