2. A 10-m thick layer of stiff saturated clay is underlain by a layer of sand. The sand is under artesian pressure. A 5.

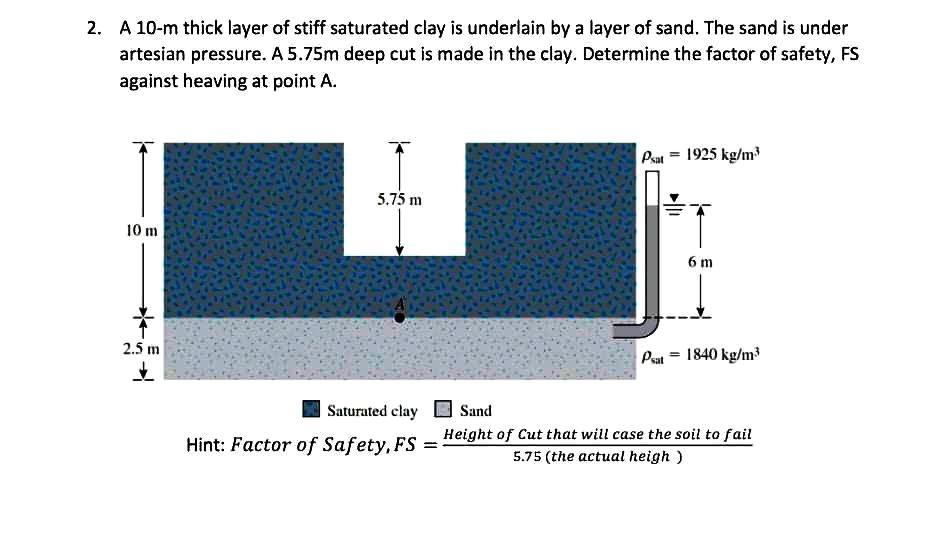

2. A 10-m thick layer of stiff saturated clay is underlain by a layer of sand. The sand is under artesian pressure. A 5.75m deep cut is made in the clay. Determine the factor of safety, FS against heaving at point A. Psat = 1925 kg/m2 5.75 m 10 m 6 m 2.5 m Paat = 1840 kg/m Saturated clay Hint: Factor of Safety, FS Sand Height of Cut that will case the soil to fail 5.75 (the actual heigh )
