1. A soil profile consisting of 3 layers is shown. Calculate the values of o, u, and o' at points A, B, C, and D. H Laye

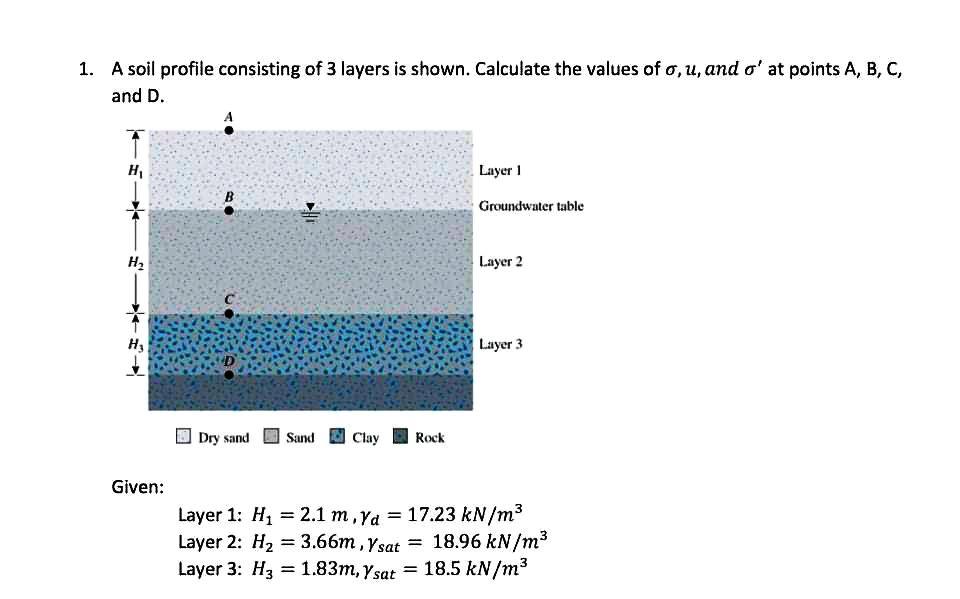

1. A soil profile consisting of 3 layers is shown. Calculate the values of o, u, and o' at points A, B, C, and D. H Layer 1 Groundwater table m→1→+2→ H2 Layer 2 HE Layer 3 Dry sand Sand Clay Rock Given: Layer 1: H= 2.1 m.Ya = 17.23 kN/m3 Layer 2: H2 = 3.66m, sat = 18.96 kN/m3 Layer 3: H3 = 1.83m, Ysat = 18.5 kN/m3 =
