The section of a solid one-way slab is shown in the figure. The concrete is a normal density concrete with a unit weight

Post by answerhappygod »

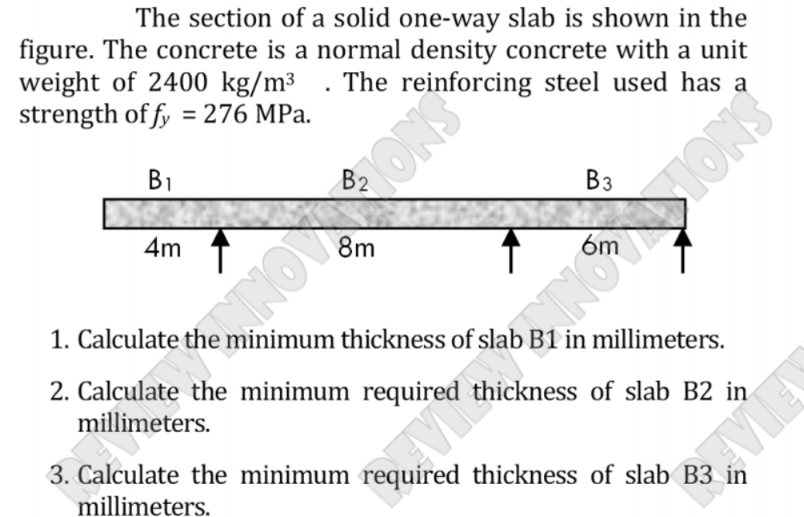

The Section Of A Solid One Way Slab Is Shown In The Figure The Concrete Is A Normal Density Concrete With A Unit Weight 1
The Section Of A Solid One Way Slab Is Shown In The Figure The Concrete Is A Normal Density Concrete With A Unit Weight 1 (198.85 KiB) Viewed 31 times
The section of a solid one-way slab is shown in the figure. The concrete is a normal density concrete with a unit weight of 2400 kg/m3 . The reinforcing steel used has a strength of fy = 276 MPa. SNO SNOS Bi B2 B3 4mT 8m 1. Calculate the minimum thickness of slab B1 in millimeters. 2. Calculate the minimum required thickness of slab B2 in millimeters. SE ALTE CON NOI 3. Calculate the minimum required thickness of slab B3 in millimeters.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
