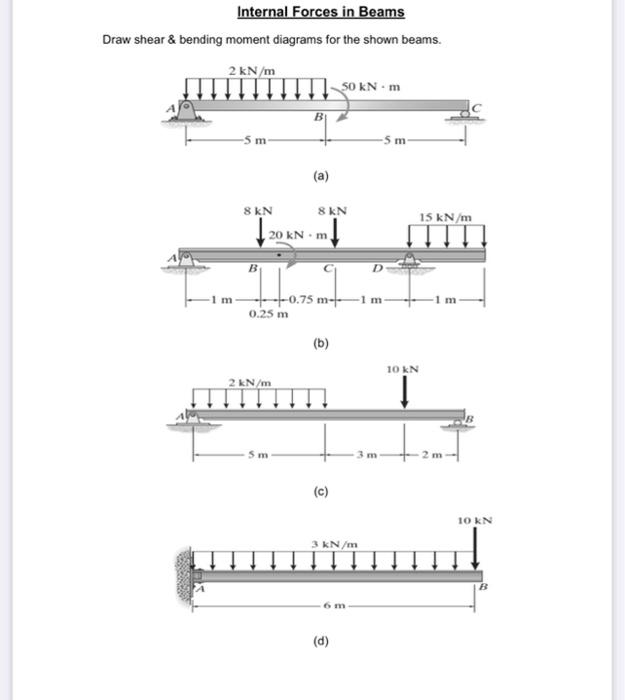

Internal Forces in Beams Draw shear & bending moment diagrams for the shown beams. 2 kN/m SOKN.m -5 m -5 m (a) 8kN 8 KN 20 kNm 15 kN/m 1 B -1 m - 0.75 m–1 m- 0.25 m -1 m (b) ) 10 KN 2 kN/m | S m 3 m m (c) c) 10 KN 3 kN/m om (d)
