Construct the Shear and Moment diagrams COMPLETELY. Indicate all the abrupt change in values of shear and moment. Show a

Post by answerhappygod »

Construct The Shear And Moment Diagrams Completely Indicate All The Abrupt Change In Values Of Shear And Moment Show A 1
Construct The Shear And Moment Diagrams Completely Indicate All The Abrupt Change In Values Of Shear And Moment Show A 1 (42.89 KiB) Viewed 18 times

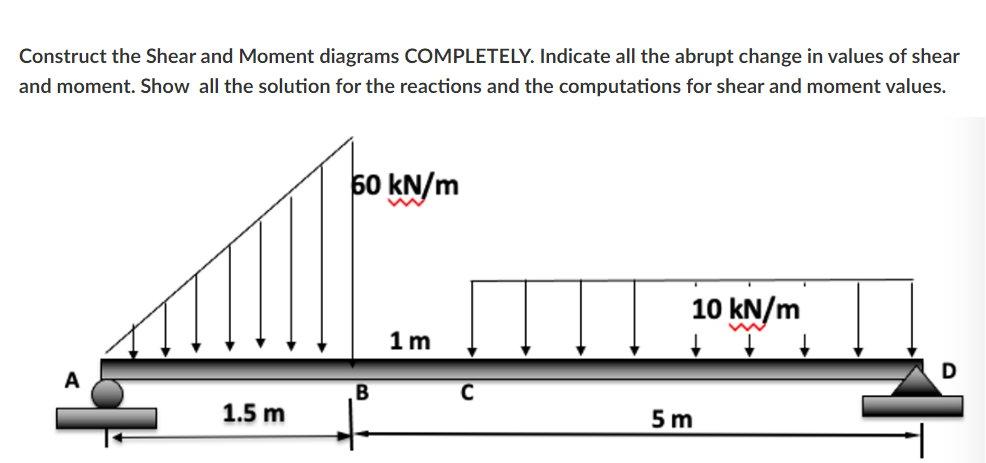

Construct the Shear and Moment diagrams COMPLETELY. Indicate all the abrupt change in values of shear and moment. Show all the solution for the reactions and the computations for shear and moment values. 60 kN/m 10 kN/m 1 m D A B с 1.5 m 5 m
