5. (20 points) Draw the shear and moment diagrams. Present distinctive straight lines and curves. Also find the maximum

Post by answerhappygod »

5 20 Points Draw The Shear And Moment Diagrams Present Distinctive Straight Lines And Curves Also Find The Maximum 1
5 20 Points Draw The Shear And Moment Diagrams Present Distinctive Straight Lines And Curves Also Find The Maximum 1 (21.9 KiB) Viewed 21 times

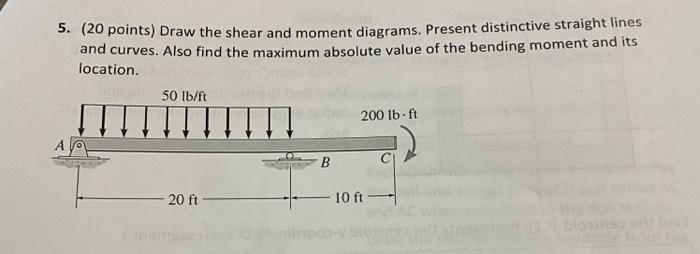

5. (20 points) Draw the shear and moment diagrams. Present distinctive straight lines and curves. Also find the maximum absolute value of the bending moment and its location. 50 lb/ft 200 lb-ft B 20 ft 10 ft DO
