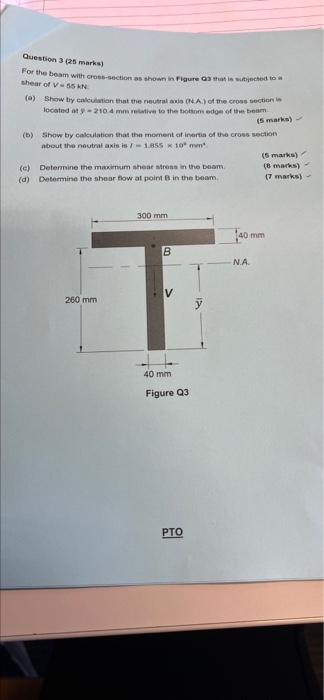

Question 3 (25 marks) For the beam with cross-section as shown in Figure out is subjected to shear of V-SN (a) Show by calculation that the neutrale (A) of the cross section located at -210.4 mm rative to the moon of the team is marks) (b) Show by calculation that the momento inertin of the cross section about the neutral axis in / 1 x 10 (5 marks) (c) Determine the maximum shear stress in the team (8 marks) (d) Determine the shear flow al point in the beam (7 marks) 300 mm 40 mm B NA Т. V 260 mm 40 mm Figure Q3 PTO
