In this project, you are concerned by the following parts: Sheet pile wall: [ABET 1.1, 1.2 and 1.3] A sheet pile is to b

[answerhappygod]

In This Project You Are Concerned By The Following Parts Sheet Pile Wall Abet 1 1 1 2 And 1 3 A Sheet Pile Is To B 1 (38.96 KiB) Viewed 37 times

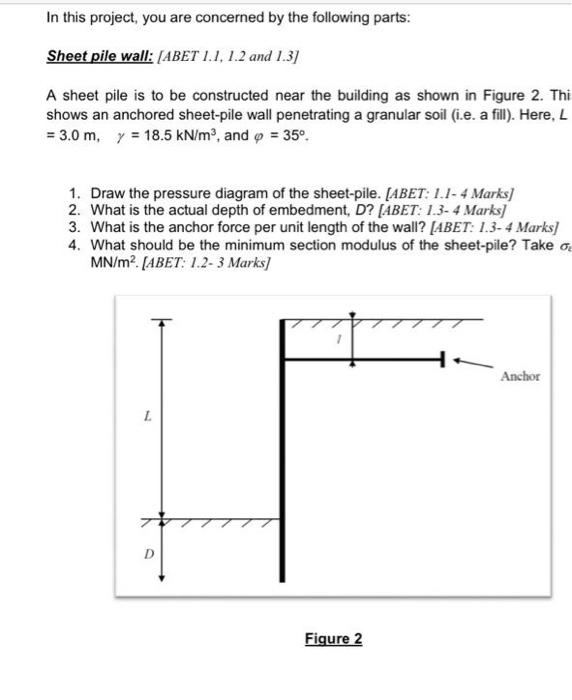

In this project, you are concerned by the following parts: Sheet pile wall: [ABET 1.1, 1.2 and 1.3] A sheet pile is to be constructed near the building as shown in Figure 2. Thi shows an anchored sheet-pile wall penetrating a granular soil (i.e. a fill). Here, L = 3.0 m, y = 18.5 kN/mº, and = 35°. 1. Draw the pressure diagram of the sheet-pile. [ABET: 1.1- 4 Marks] 2. What is the actual depth of embedment, D? [ABET: 1.3- 4 Marks] 3. What is the anchor force per unit length of the wall? [ABET: 1.3- 4 Marks] 4. What should be the minimum section modulus of the sheet-pile? Take MN/m2. [ABET: 1.2- 3 Marks Anchor 2 D Figure 2
