2. The rain gauge measurements of an 8-hour storm are given below. The initial and limit infiltration capacity of solis.

[answerhappygod]

2 The Rain Gauge Measurements Of An 8 Hour Storm Are Given Below The Initial And Limit Infiltration Capacity Of Solis 1 (35.23 KiB) Viewed 31 times

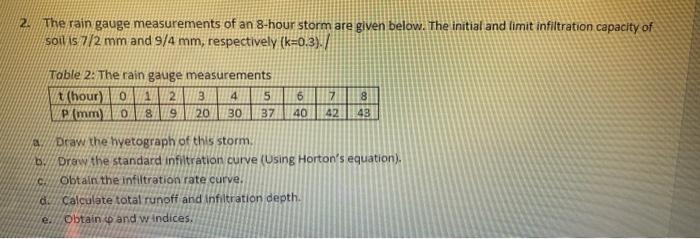

2. The rain gauge measurements of an 8-hour storm are given below. The initial and limit infiltration capacity of solis. 7/2 mm and 9/4 mm, respectively (k=0.3). Table 2. The rain gauge measurements t(hour)0 3 4 5 PAmm) 0 8 9 20 30 37 6 40 7 42 8 43 Draw the hyetograph of this storm. Draw the standard infiltration curve (Using Horton's equation), c!/Obtain the infiltration rate curve. ci Calculate total runoff and infiltration depth e. Obtain and w indices.
