Calculate The Internal Forced Of The Following Beam W 41 76 In M I 3m C So Gm 125 28 Kan 125 28 Kn Scanned With Cams 1 (316.61 KiB) Viewed 34 times
MAKE SURE TO SHOW YOUR WORK

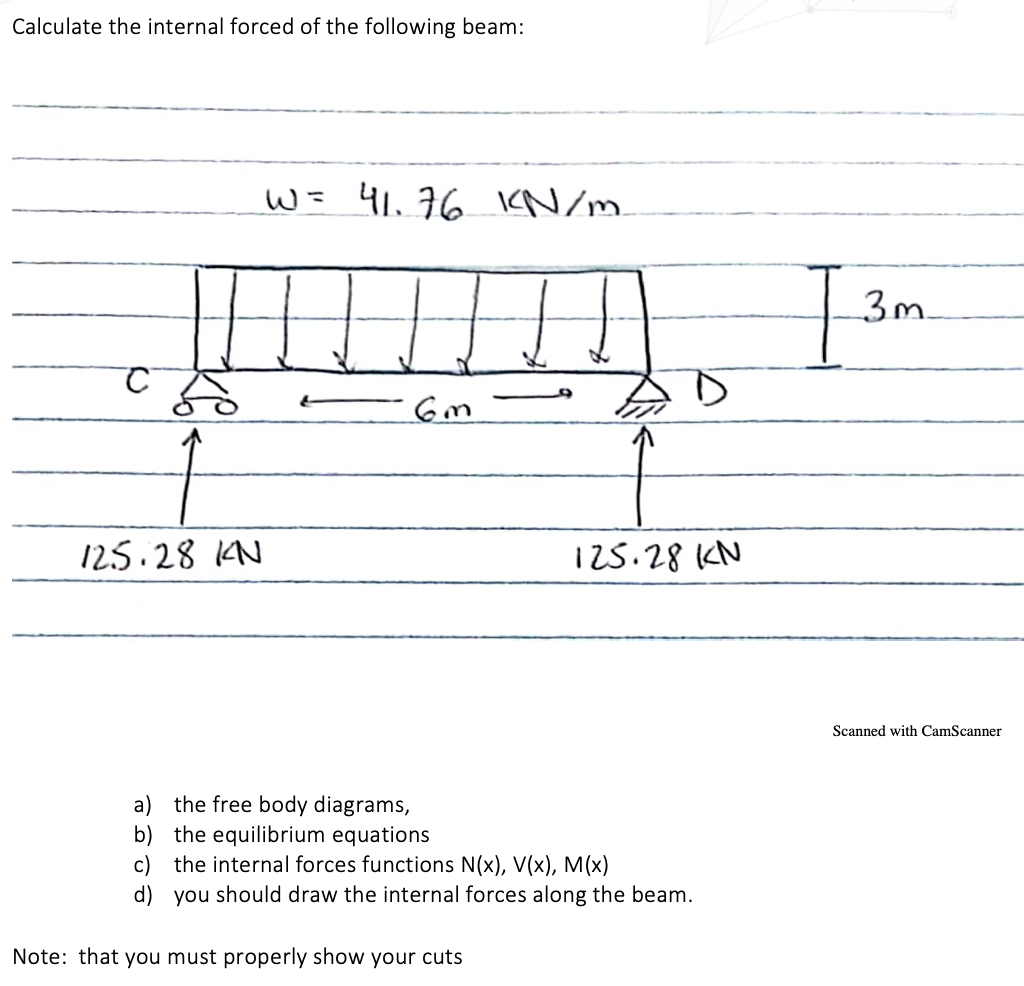

Calculate the internal forced of the following beam: W = 41.76 IN/m I 3m. C so Gm 125.28 KAN 125.28 KN Scanned with CamScanner a) the free body diagrams, b) the equilibrium equations c) the internal forces functions N(x), V(x), M(x) d) you should draw the internal forces along the beam. Note: that you must properly show your cuts
