use your own readings and draw a Hydrographs then comment using the statements given in a picture
2 1 4 Conclusions Discuss The Results Obtained In The Experiments Performed Describe The Shape Of Each Hydrograph And 2 (58.17 KiB) Viewed 67 times
2.1.4 Conclusions Discuss the results obtained in the experiments performed. Describe the shape of each hydrograph, and comment on the effects of each parameter on the run-off experienced. Suggest reasons for any deviation from the expected results.

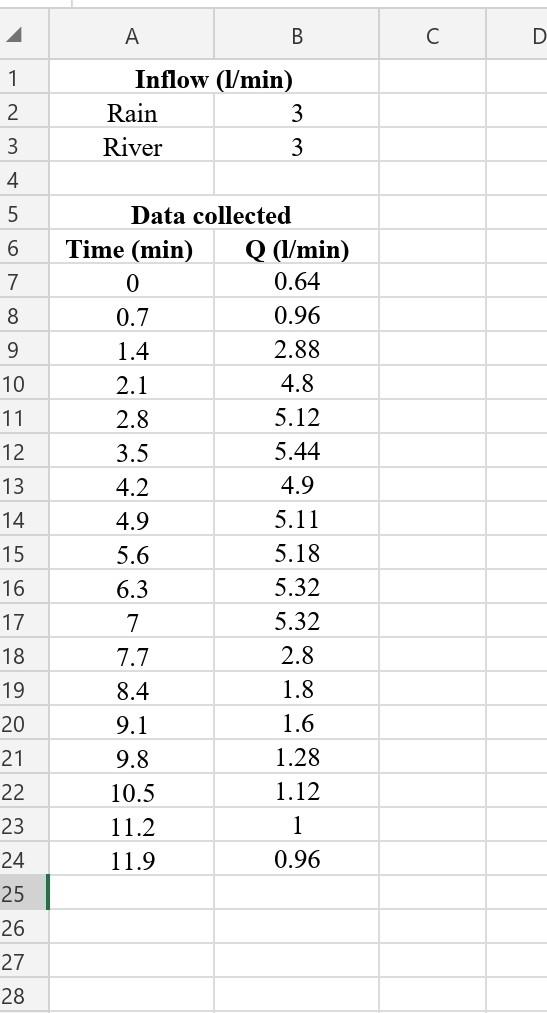

4 A B с D Inflow (l/min) Rain 3 River 3 Ñ Ð o ovou Aw nA 10 11 12 13 14 Data collected Time (min) Q (l/min) 0 0.64 0.7 0.96 1.4 2.88 2.1 4.8 2.8 5.12 3.5 5.44 4.2 4.9 4.9 5.11 5.6 5.18 6.3 5.32 7 5.32 7.7 2.8 8.4 1.8 9.1 1.6 9.8 1.28 10.5 1.12 11.2 1 11.9 0.96 15 16 17 18 OOOO 19 20 21 22 23 24 25 26 27 28
