Question 1 (15 points]: Consider beam to have rectangular section of width b and height h h V Take V = 150 kN, b = 25 cm

Post by answerhappygod »

Question 1 15 Points Consider Beam To Have Rectangular Section Of Width B And Height H H V Take V 150 Kn B 25 Cm 1
Question 1 15 Points Consider Beam To Have Rectangular Section Of Width B And Height H H V Take V 150 Kn B 25 Cm 1 (28.11 KiB) Viewed 49 times
Question 1 15 Points Consider Beam To Have Rectangular Section Of Width B And Height H H V Take V 150 Kn B 25 Cm 2
Question 1 15 Points Consider Beam To Have Rectangular Section Of Width B And Height H H V Take V 150 Kn B 25 Cm 2 (28.11 KiB) Viewed 49 times

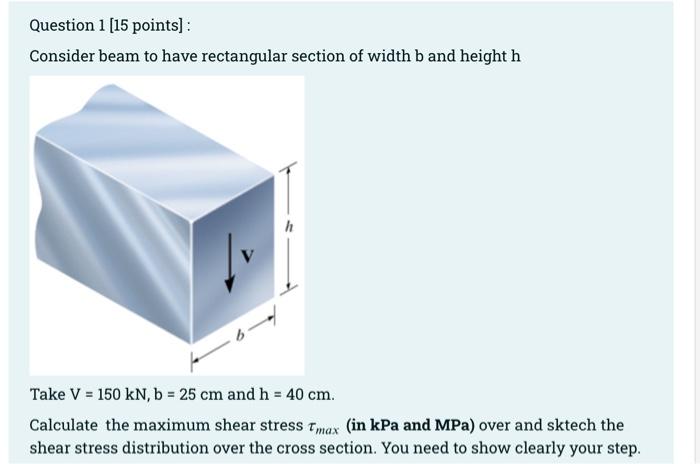

Question 1 (15 points]: Consider beam to have rectangular section of width b and height h h V Take V = 150 kN, b = 25 cm and h = 40 cm. Calculate the maximum shear stress Tmax (in kPa and MPa) over and sktech the shear stress distribution over the cross section. You need to show clearly your step.
