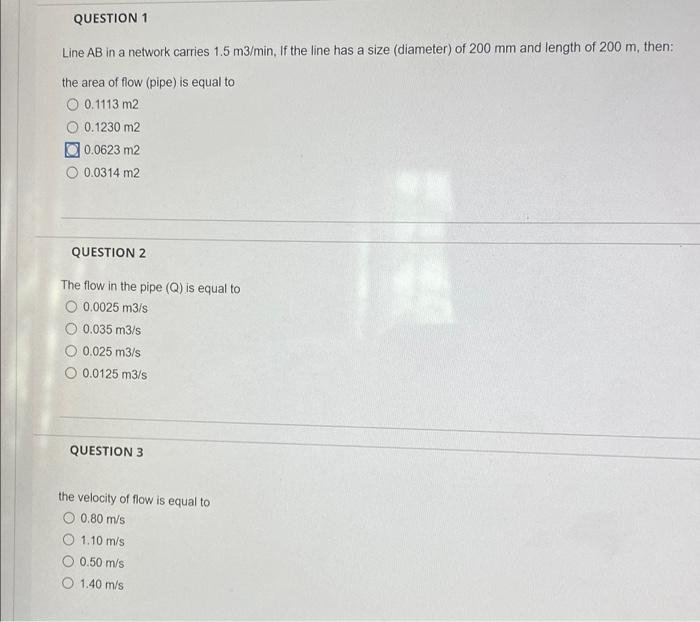

Question 1 Line Ab In A Network Carries 1 5 M3 Min If The Line Has A Size Diameter Of 200 Mm And Length Of 200 M The 1 (37.99 KiB) Viewed 28 times

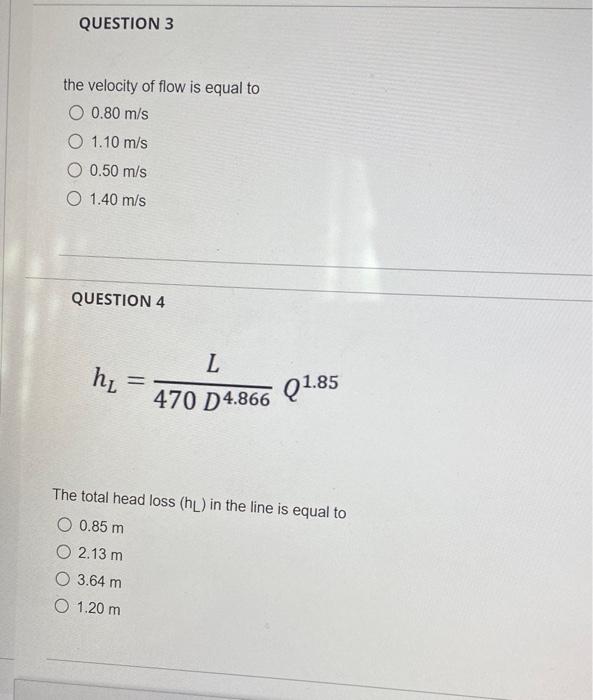

Question 1 Line Ab In A Network Carries 1 5 M3 Min If The Line Has A Size Diameter Of 200 Mm And Length Of 200 M The 2 (37.38 KiB) Viewed 28 times
QUESTION 1 Line AB in a network carries 1.5 m3/min. If the line has a size (diameter) of 200 mm and length of 200 m, then: the area of flow (pipe) is equal to O 0.1113 m2 O 0.1230 m2 0.0623 m2 0.0314 m2 QUESTION 2 The flow in the pipe (Q) is equal to O 0.0025 m3/s O 0.035 m3/s O 0.025 m3/s O 0.0125 m3/s QUESTION 3 the velocity of flow is equal to O 0.80 m/s 1.10 m/s 0.50 m/s O 1.40 m/s
QUESTION 3 the velocity of flow is equal to O 0.80 m/s O 1.10 m/s O 0.50 m/s O 1.40 m/s QUESTION 4 L հլ 470 D4.866 Q1.85 The total head loss (hu) in the line is equal to O 0.85 m O 2.13 m O 3.64 m O 1.20 m
